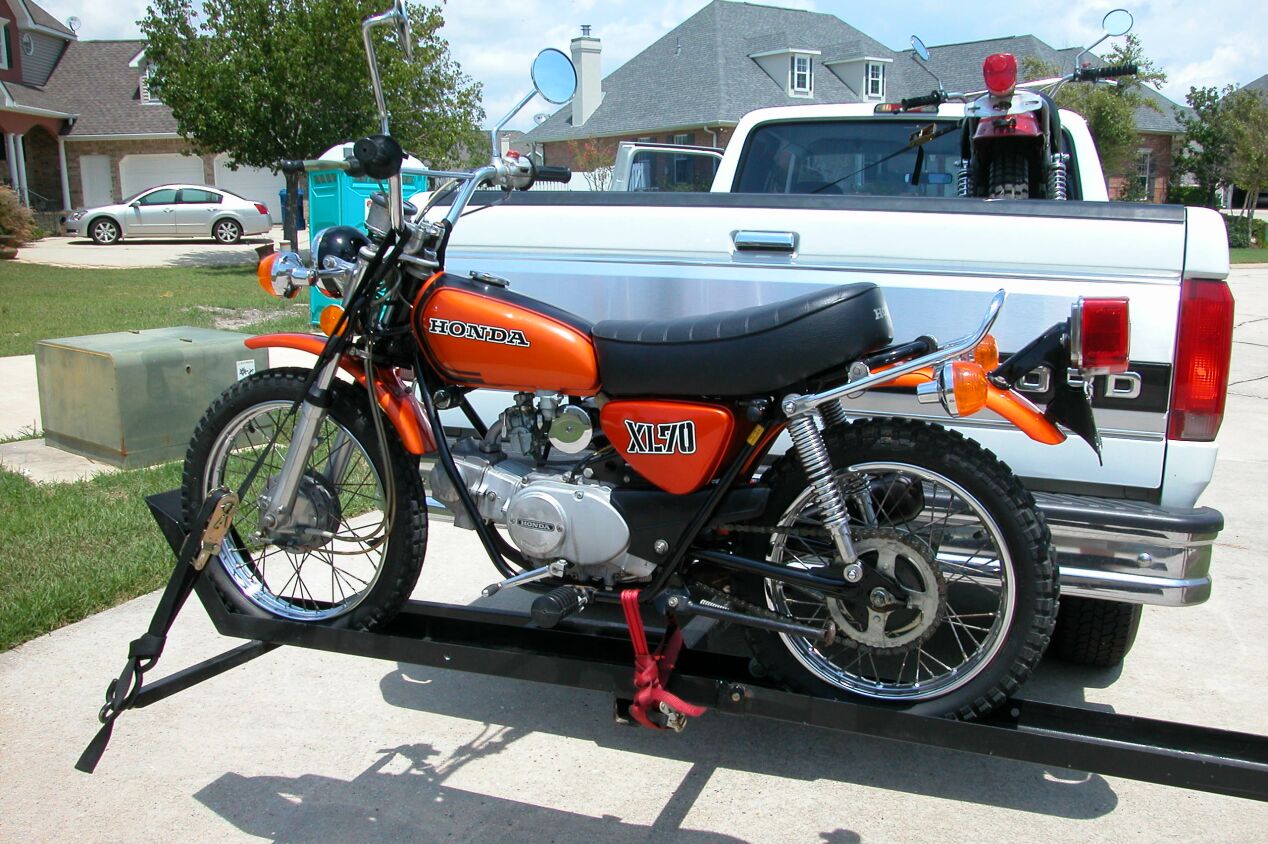

Restoration Performed for:Dave Cambas1974 Honda XL70 K0 Candy Topaz Orange / Black 08/20/2006 - 10/31/2006

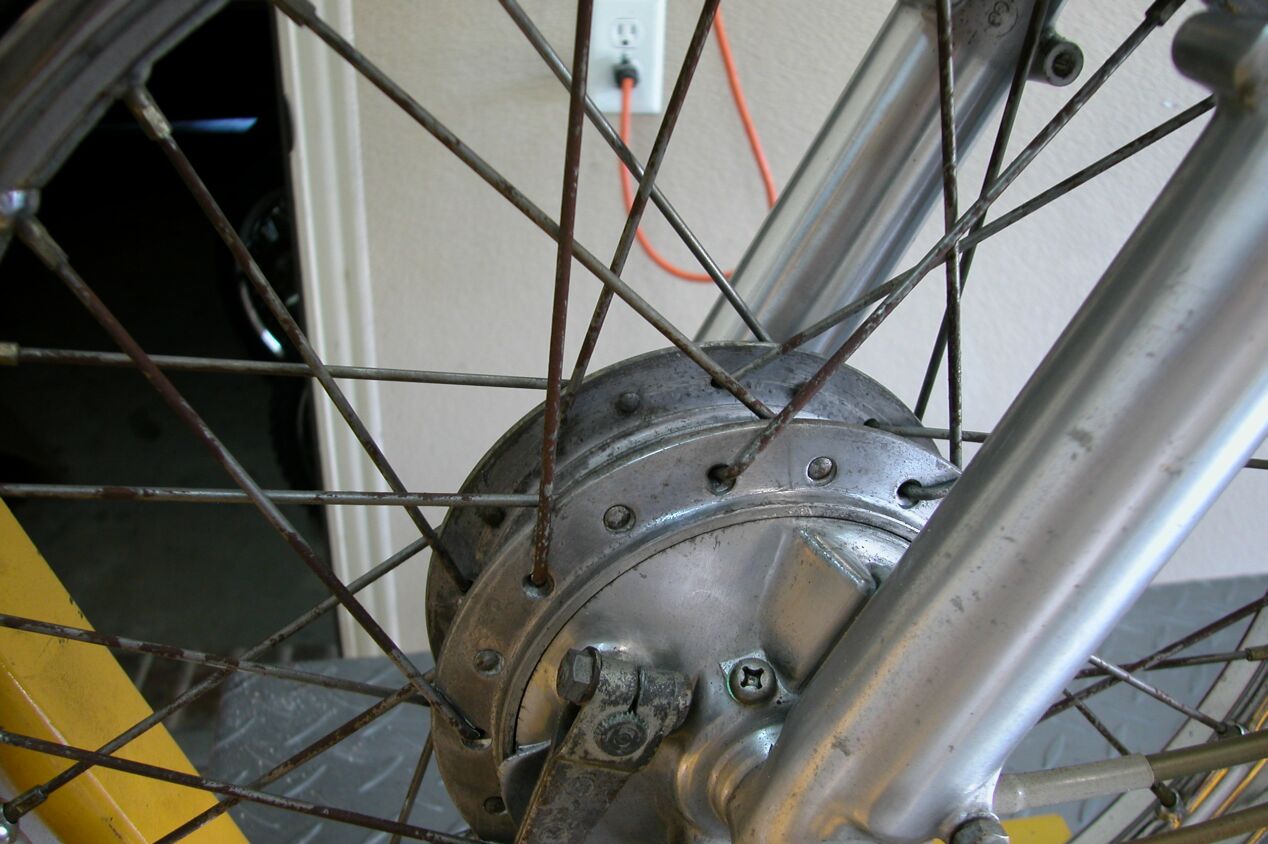

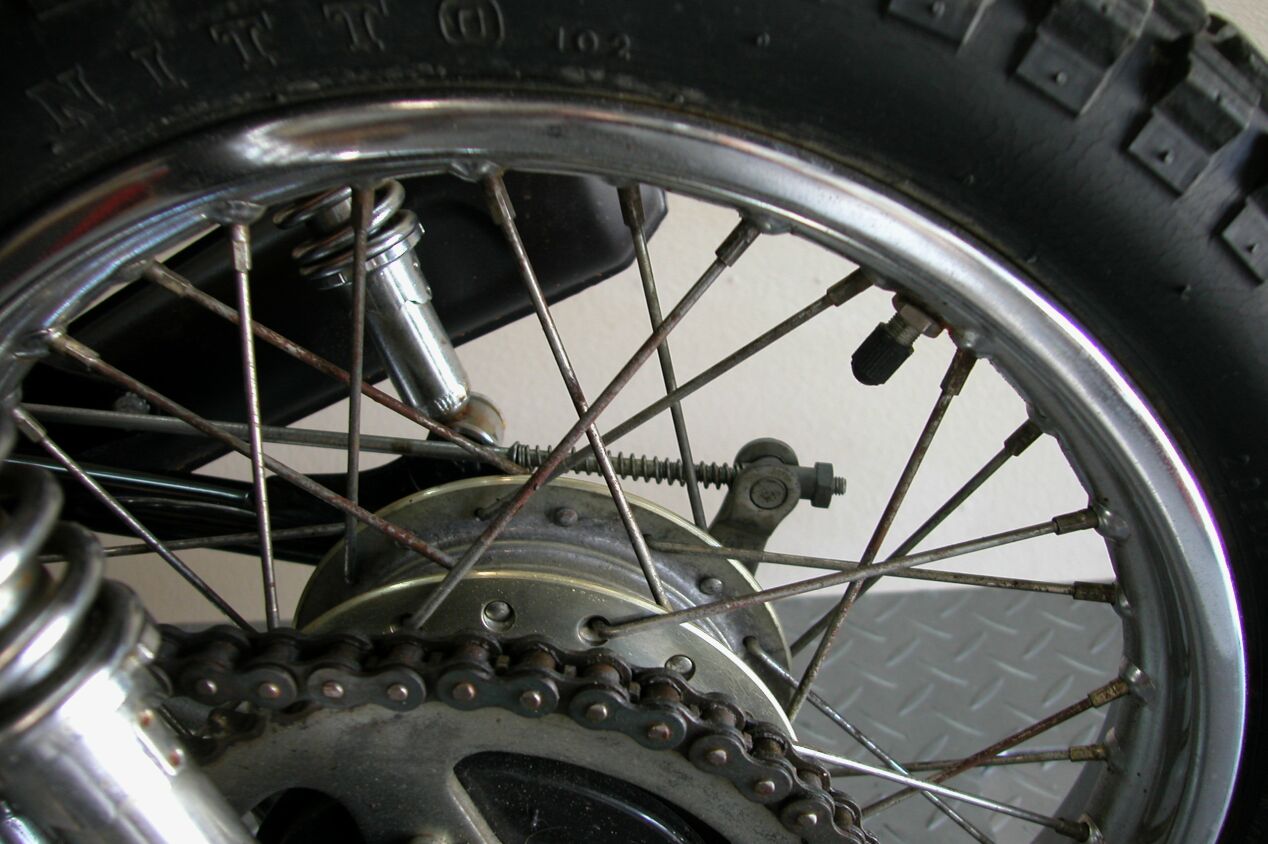

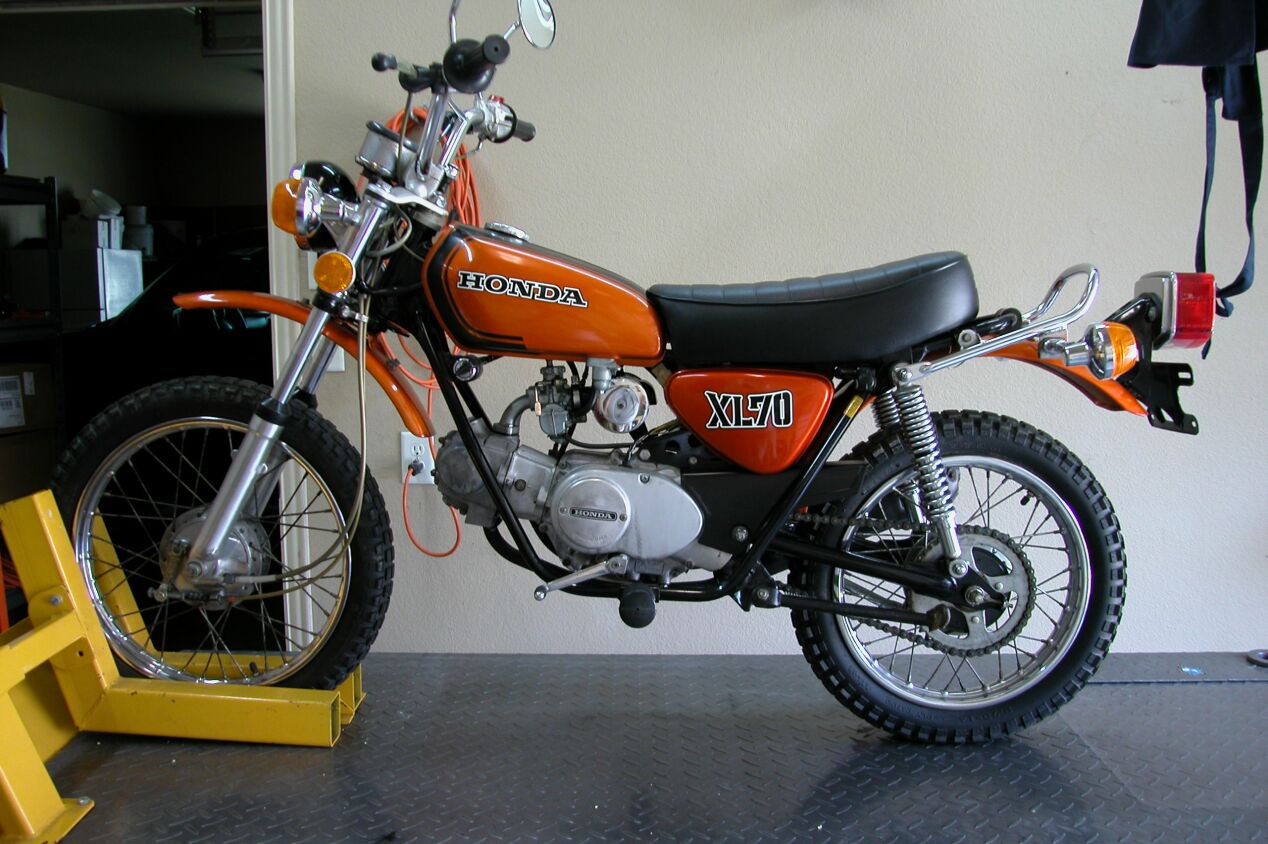

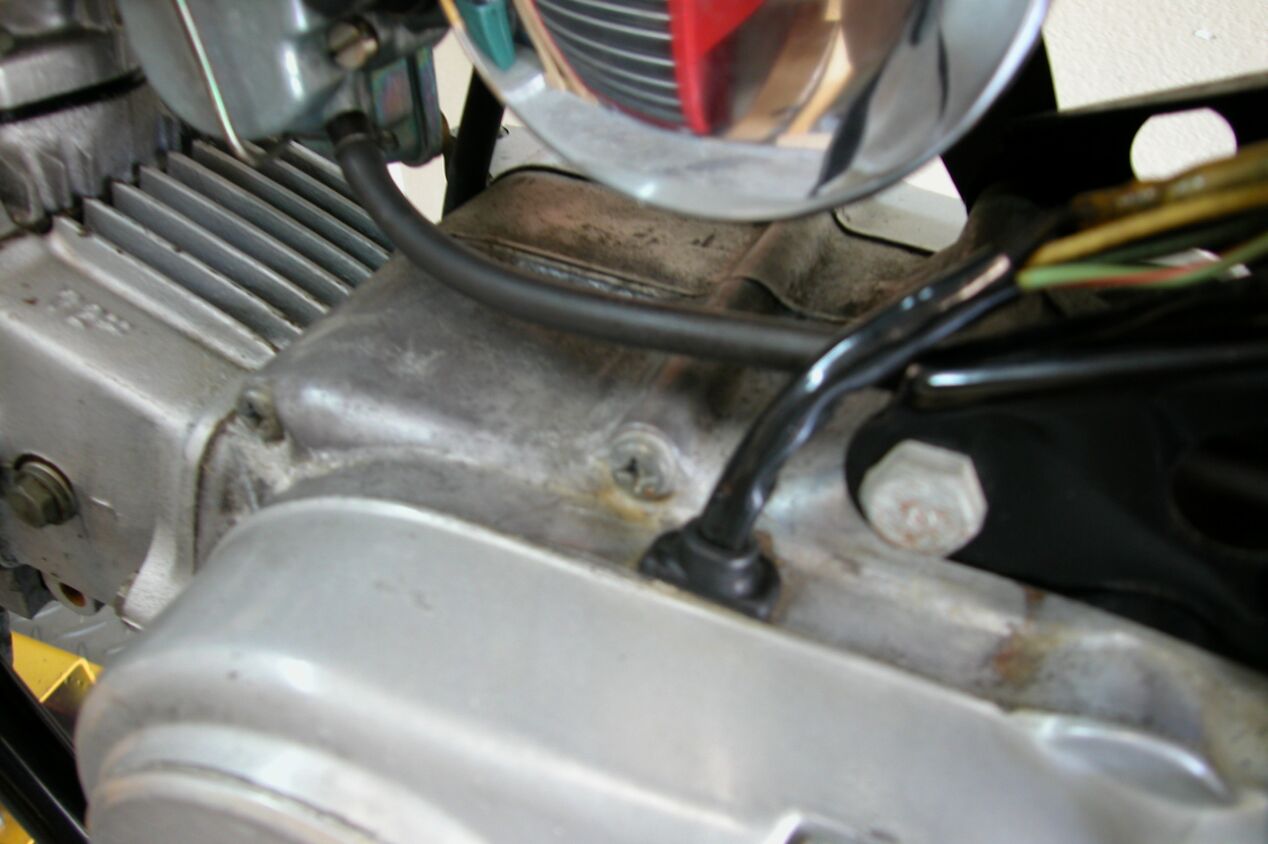

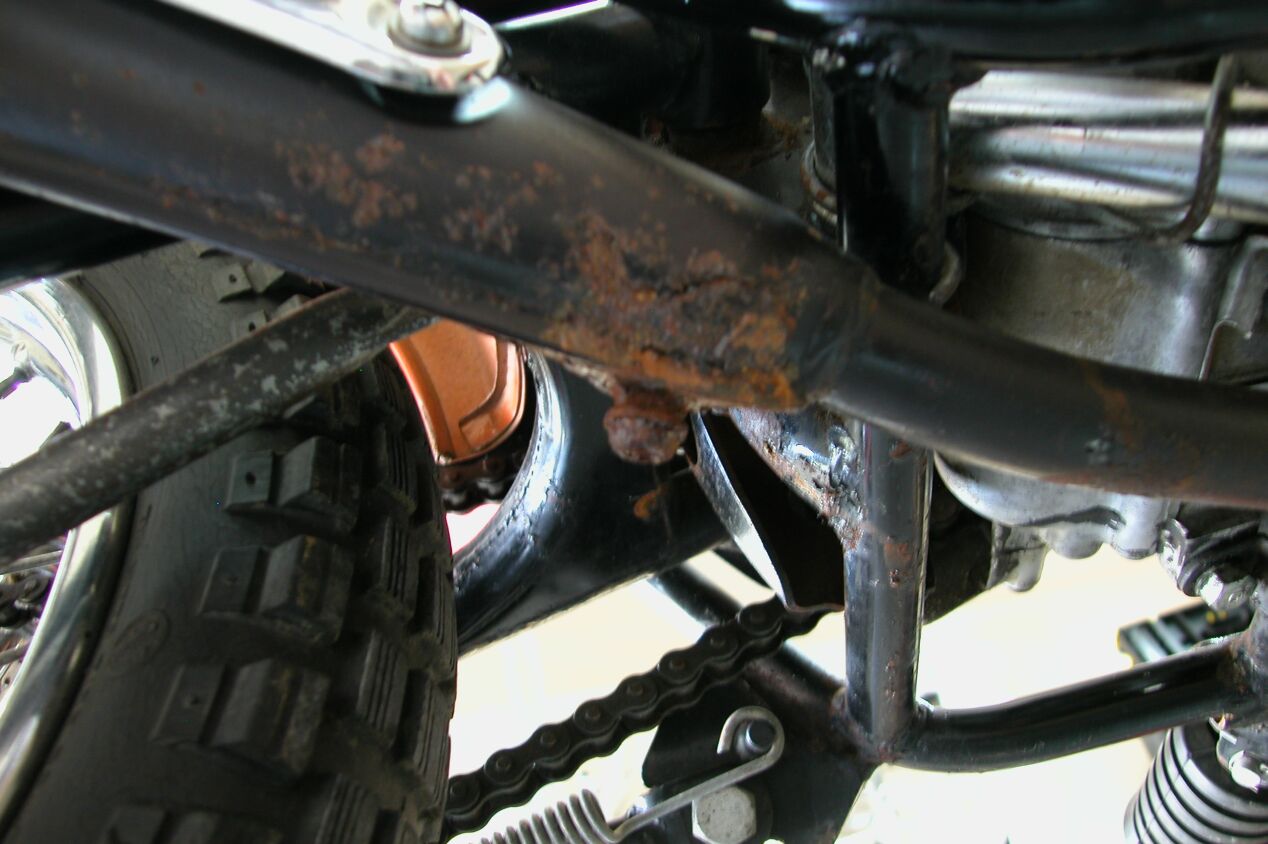

Miscellaneous shots for reference purposes

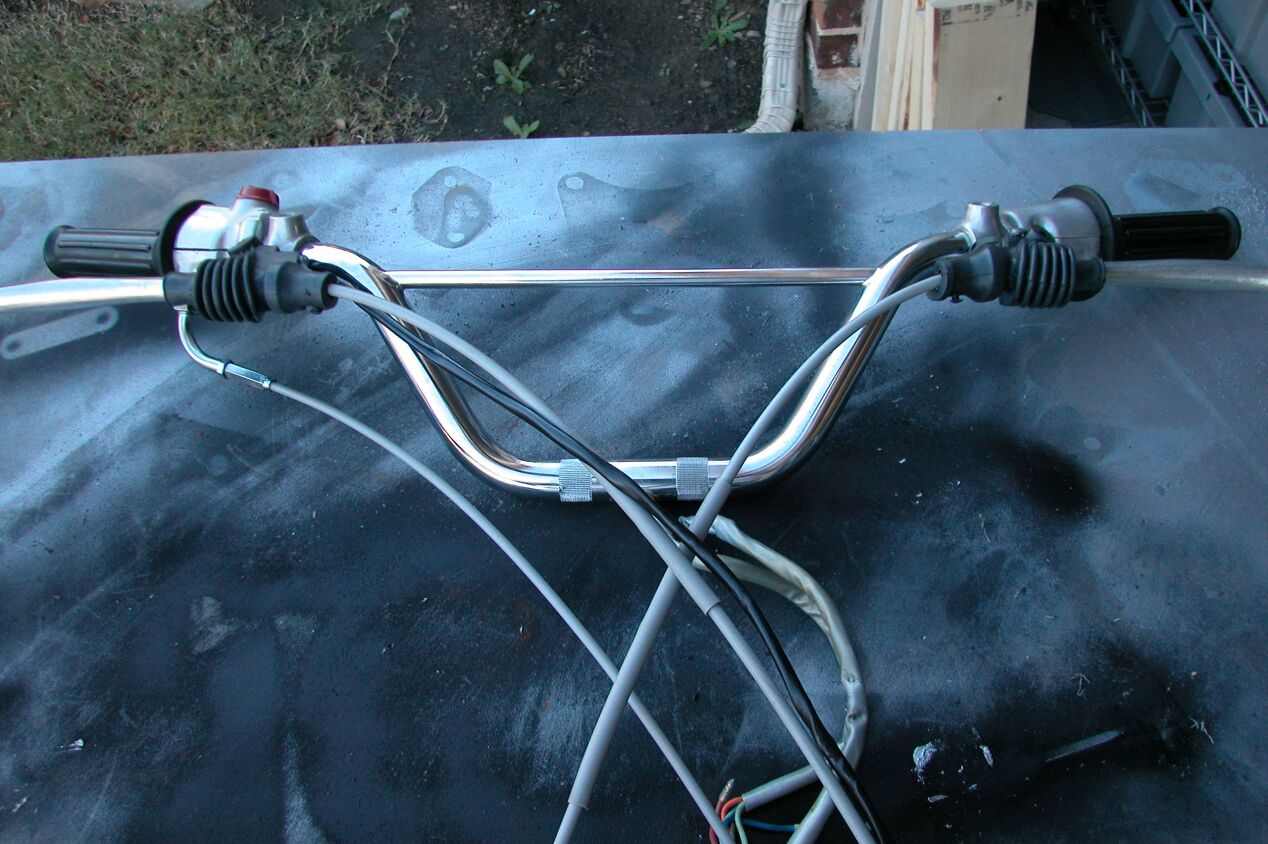

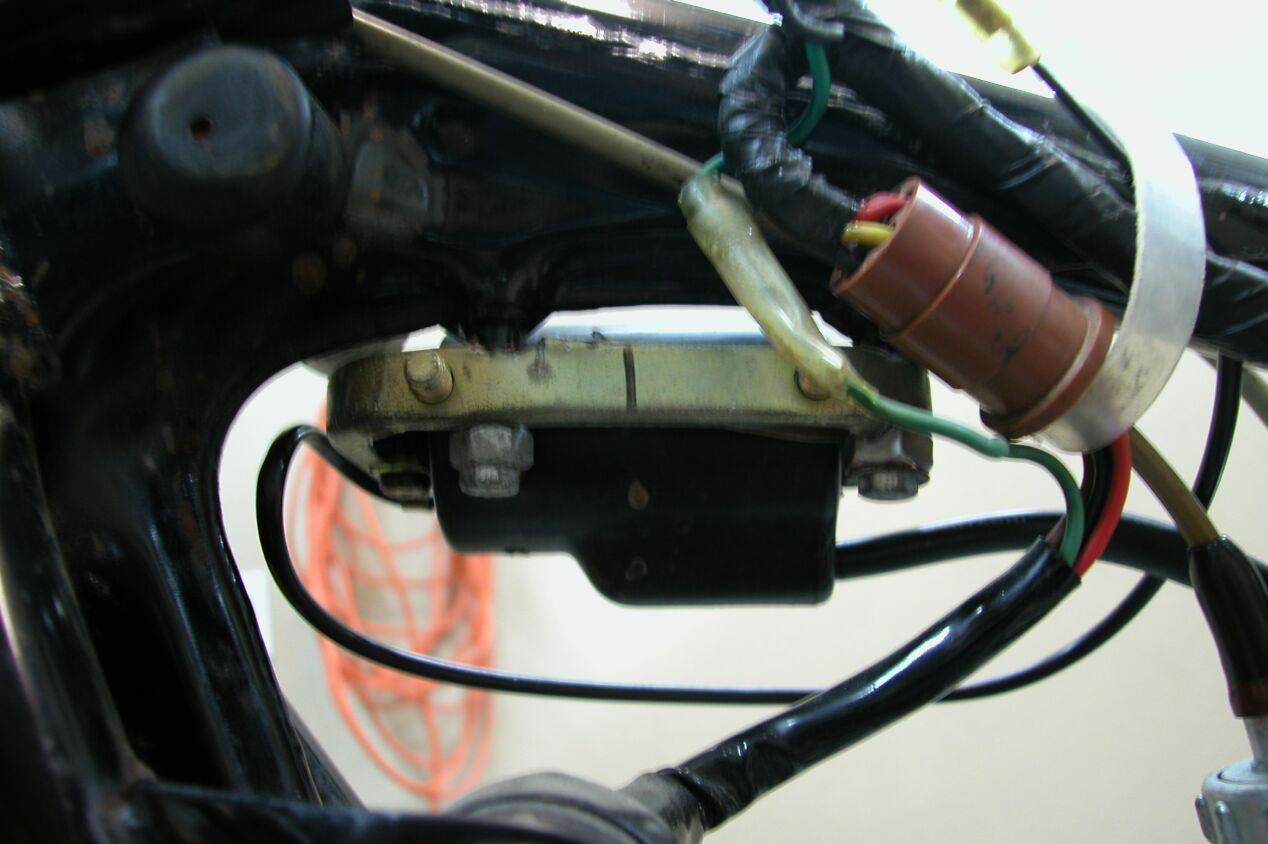

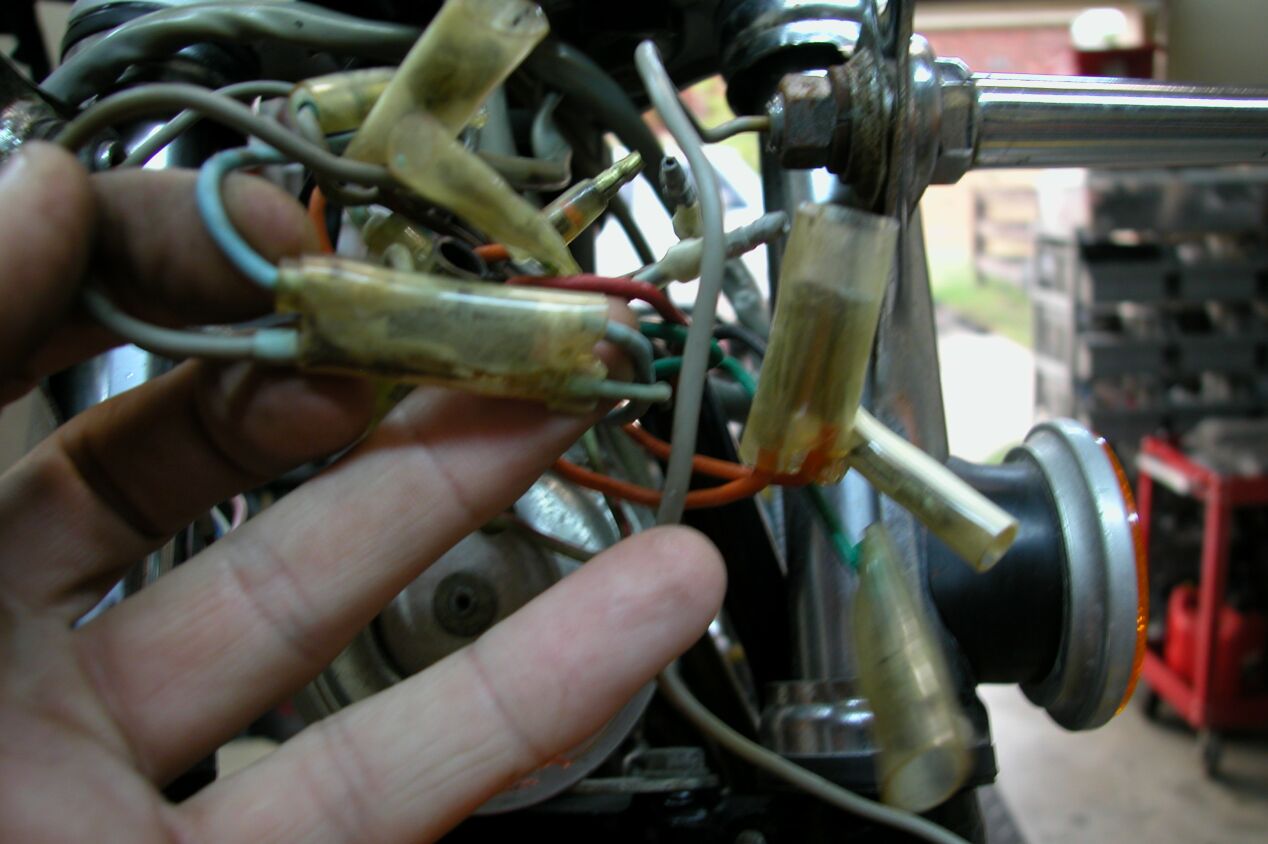

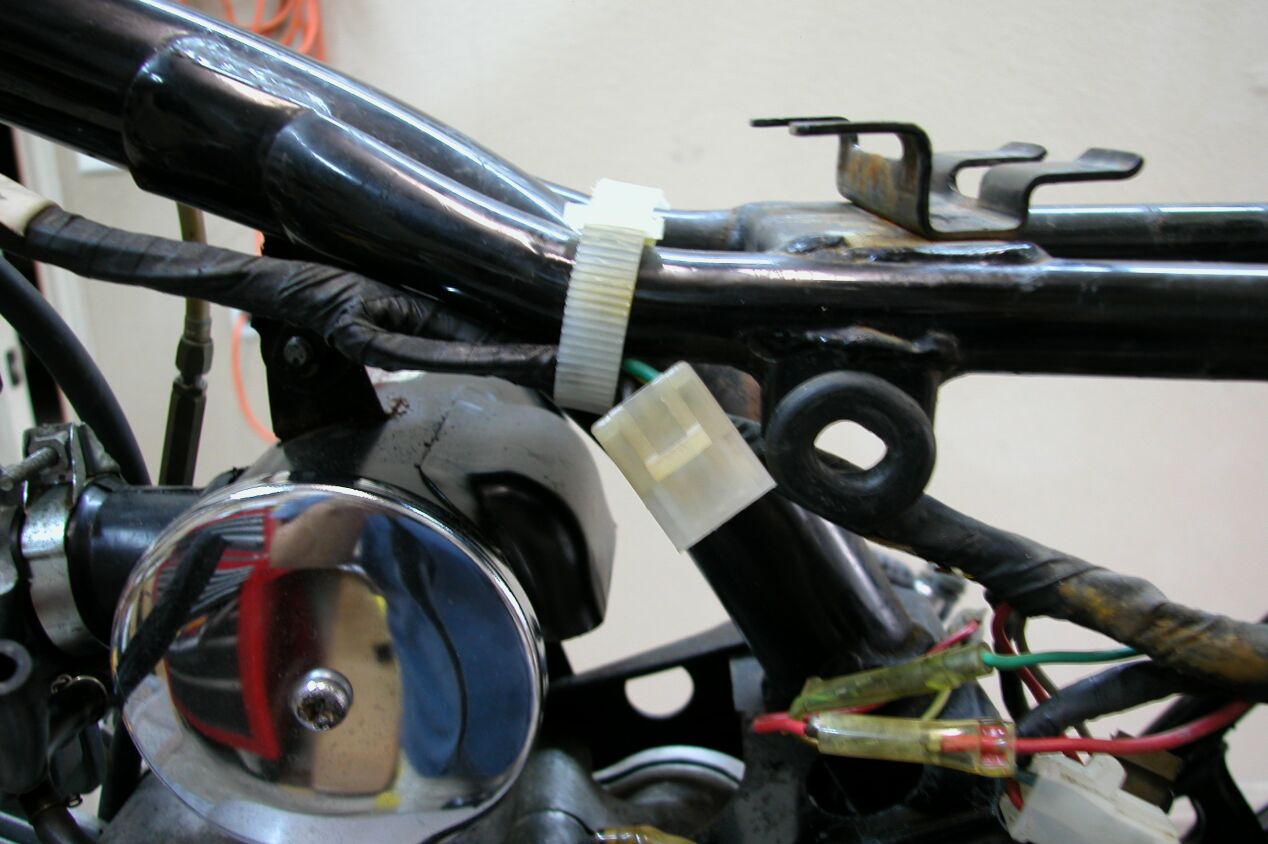

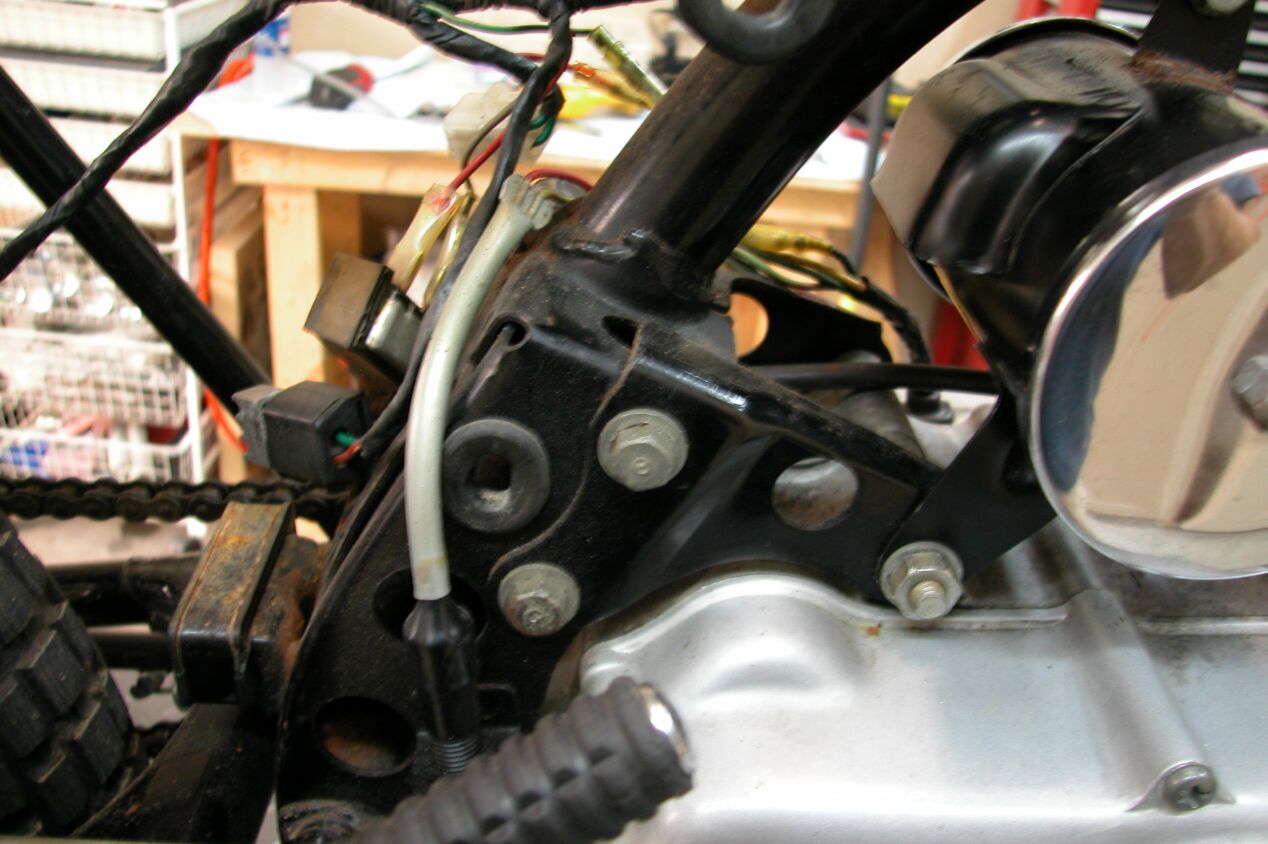

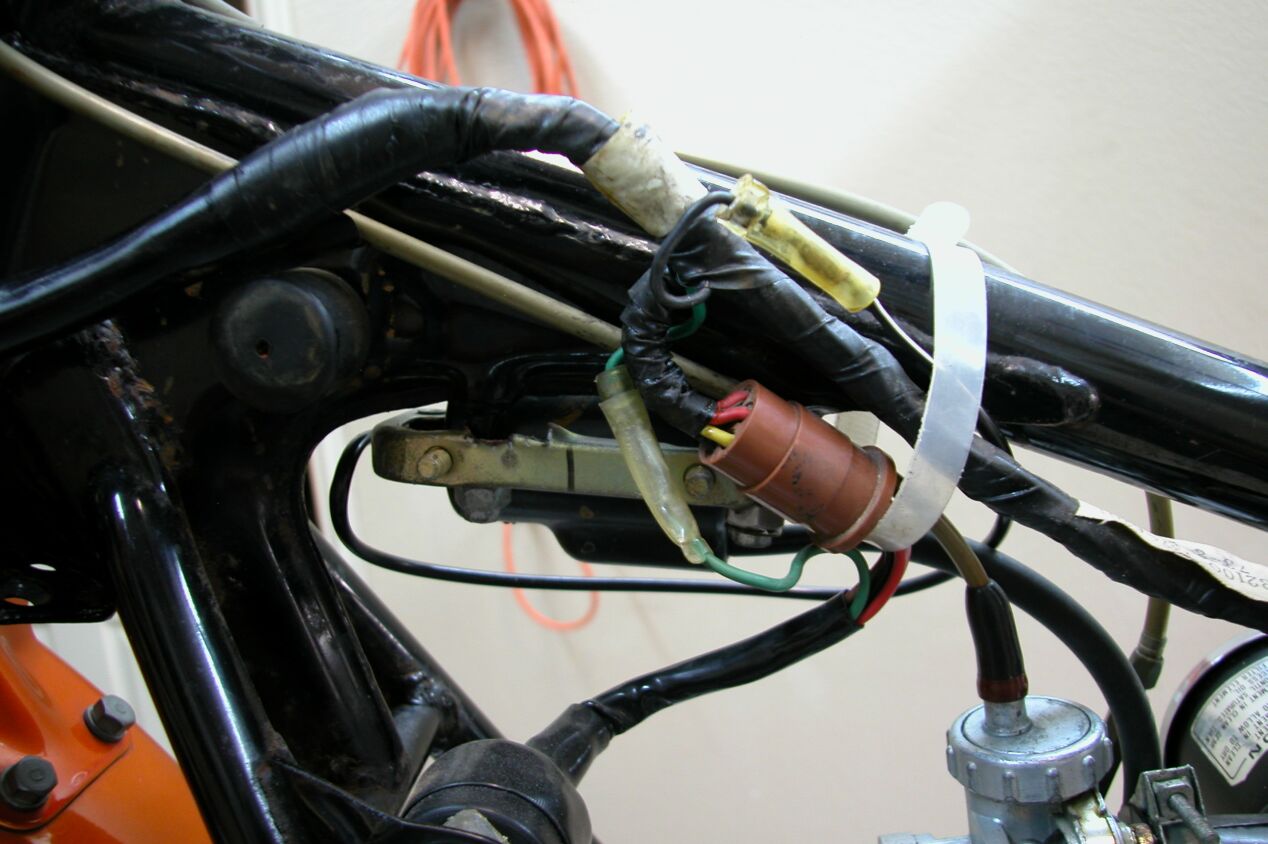

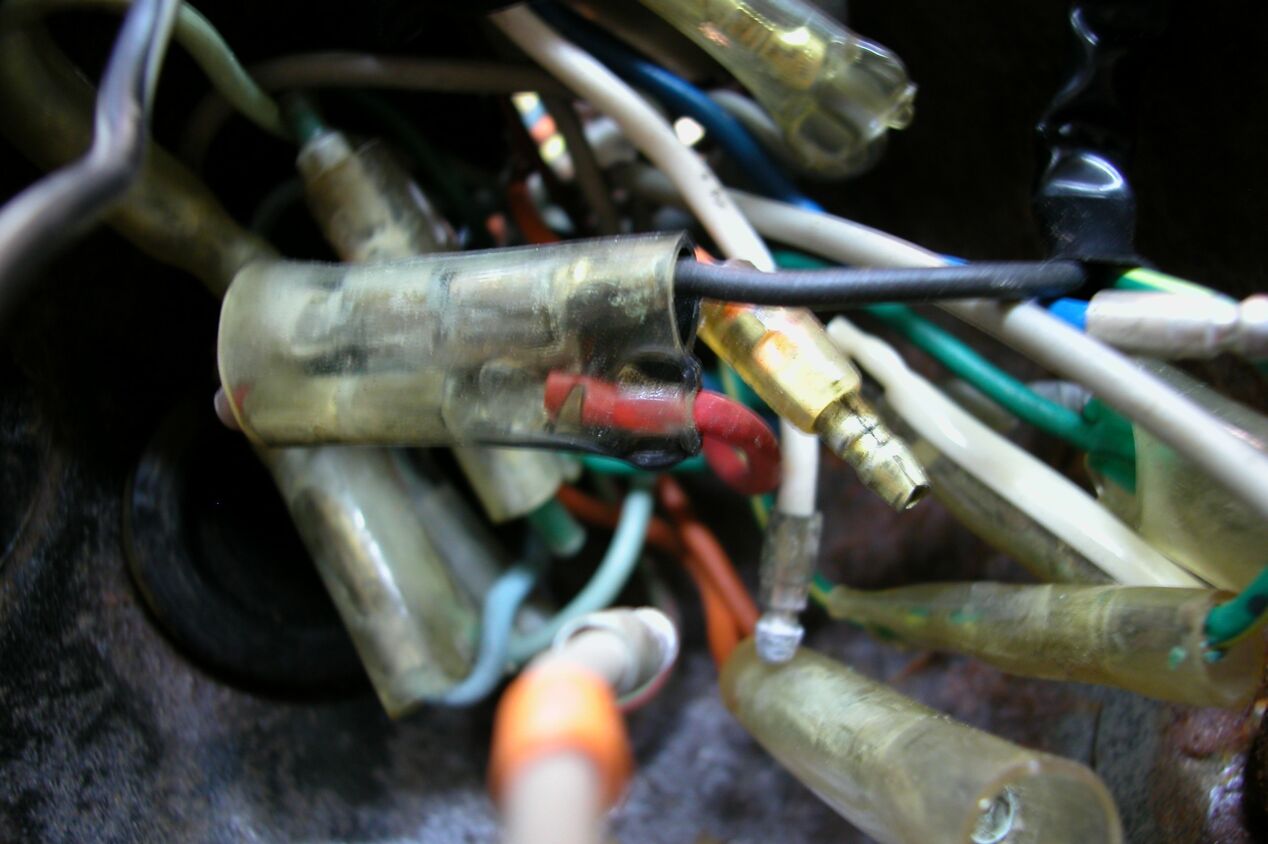

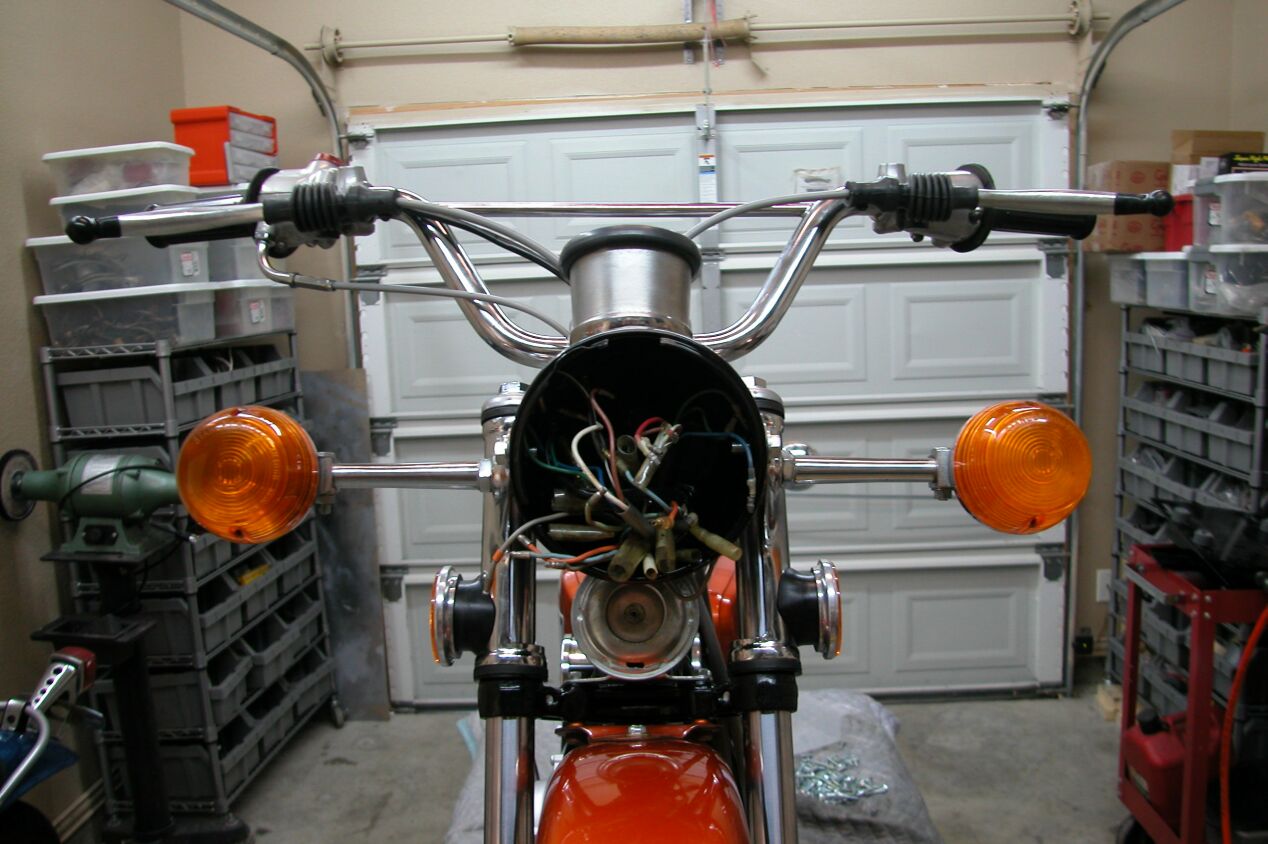

One black wire from front turn signal switch goes into red harness

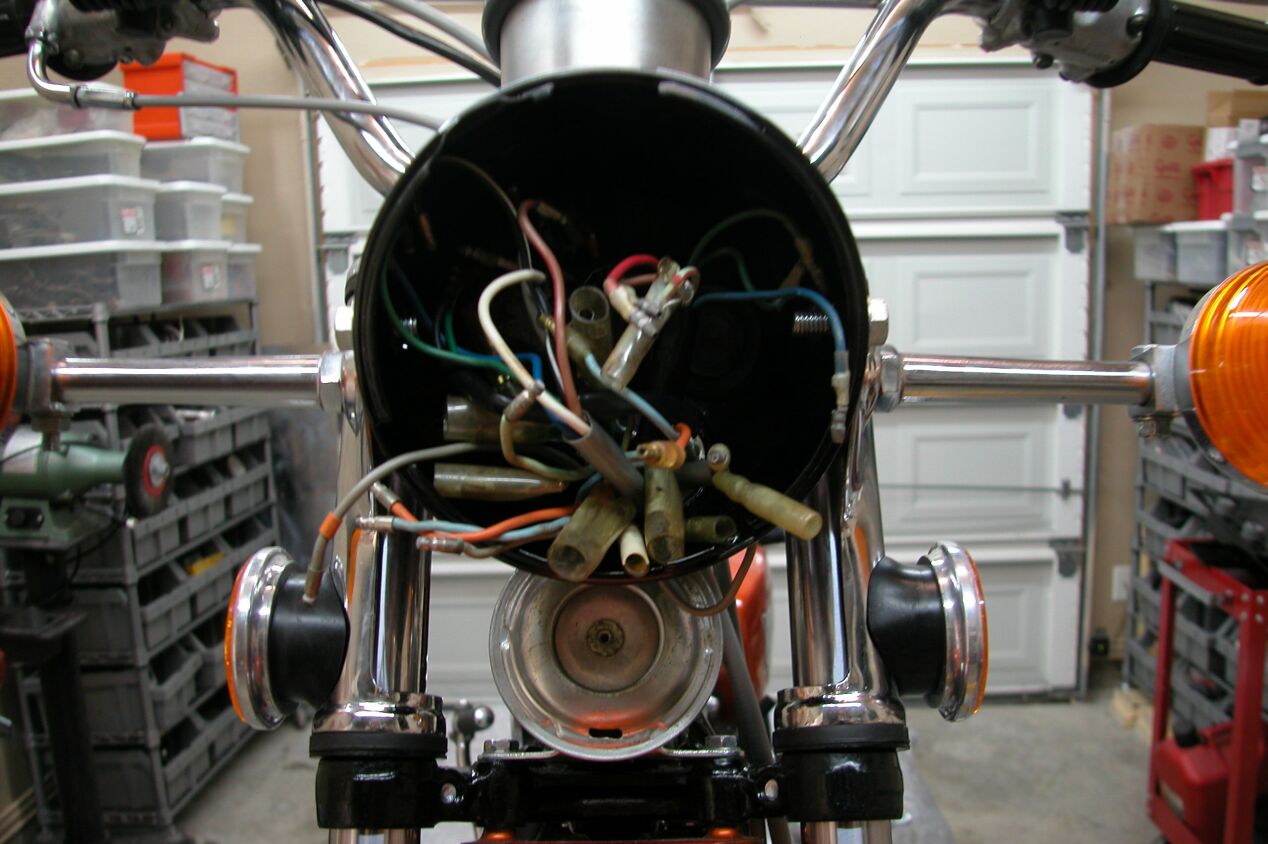

Wire with light blue sleeve goes in this connector

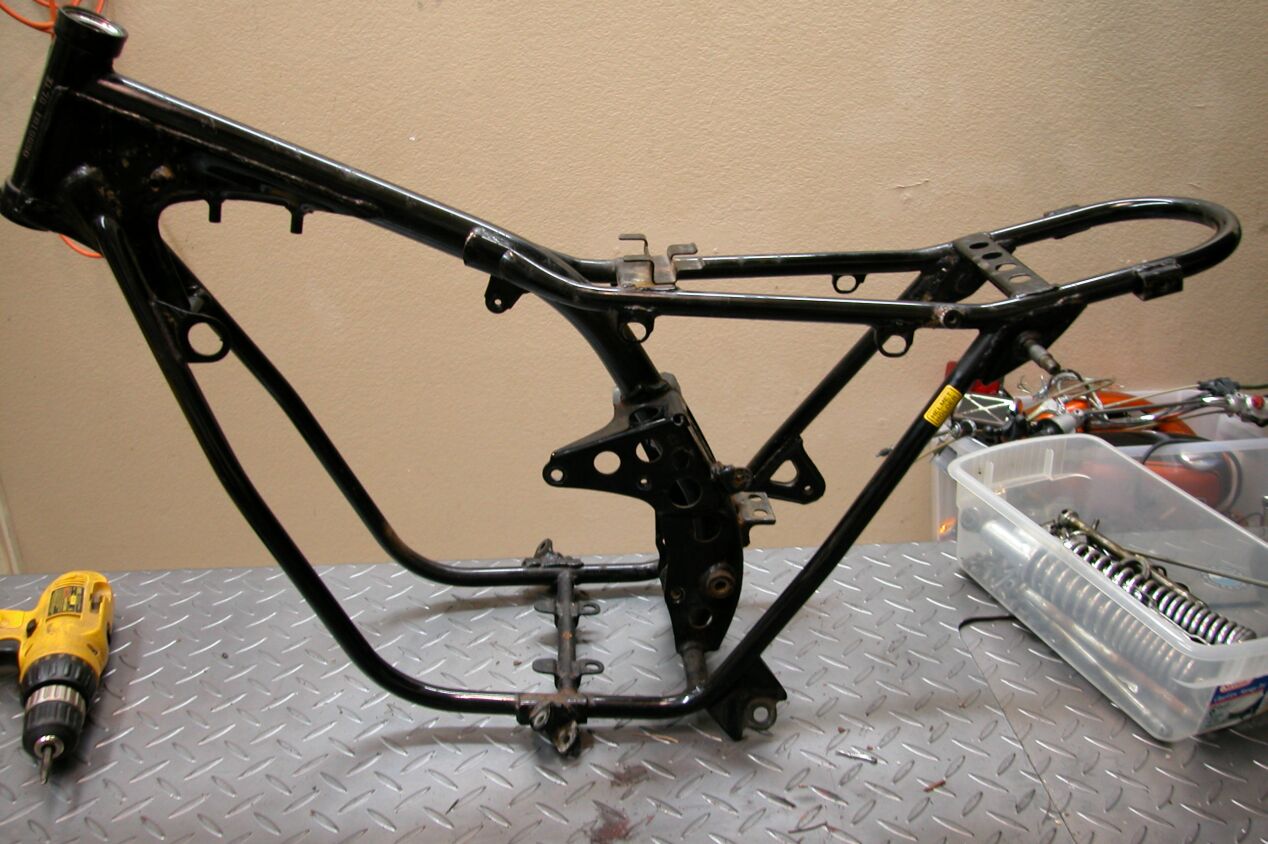

Down to the bare frame - 08/22/2006

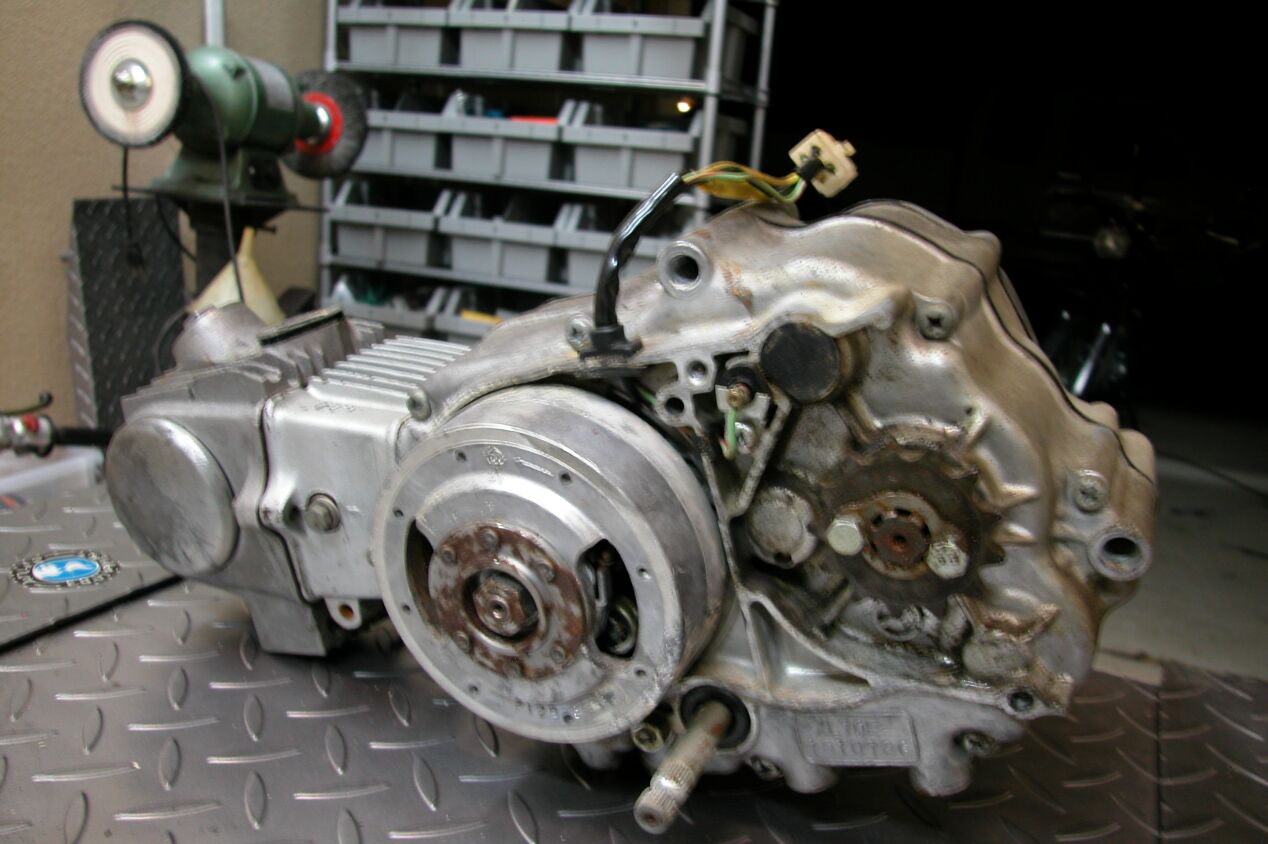

Engine ready for disassembly and rebuilding

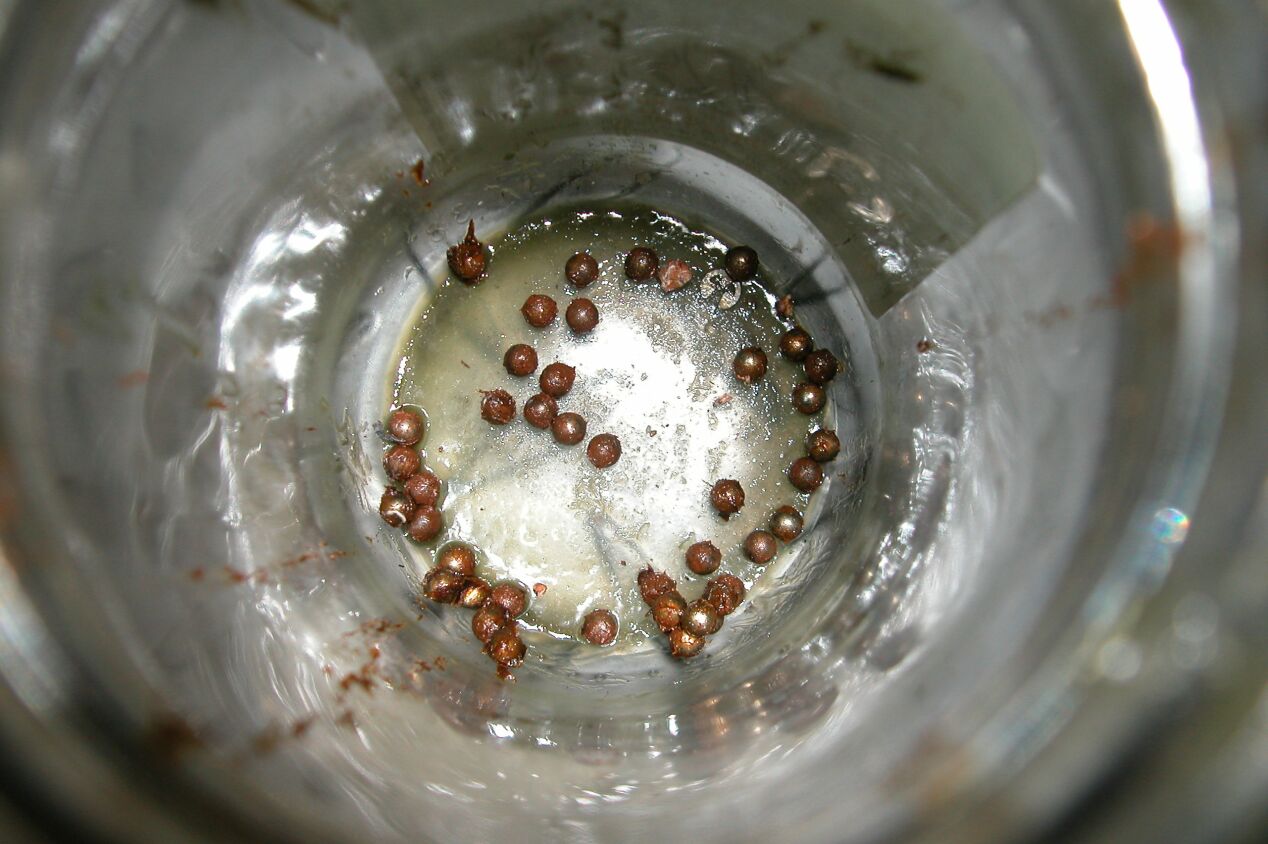

The steering head bearings were shot.

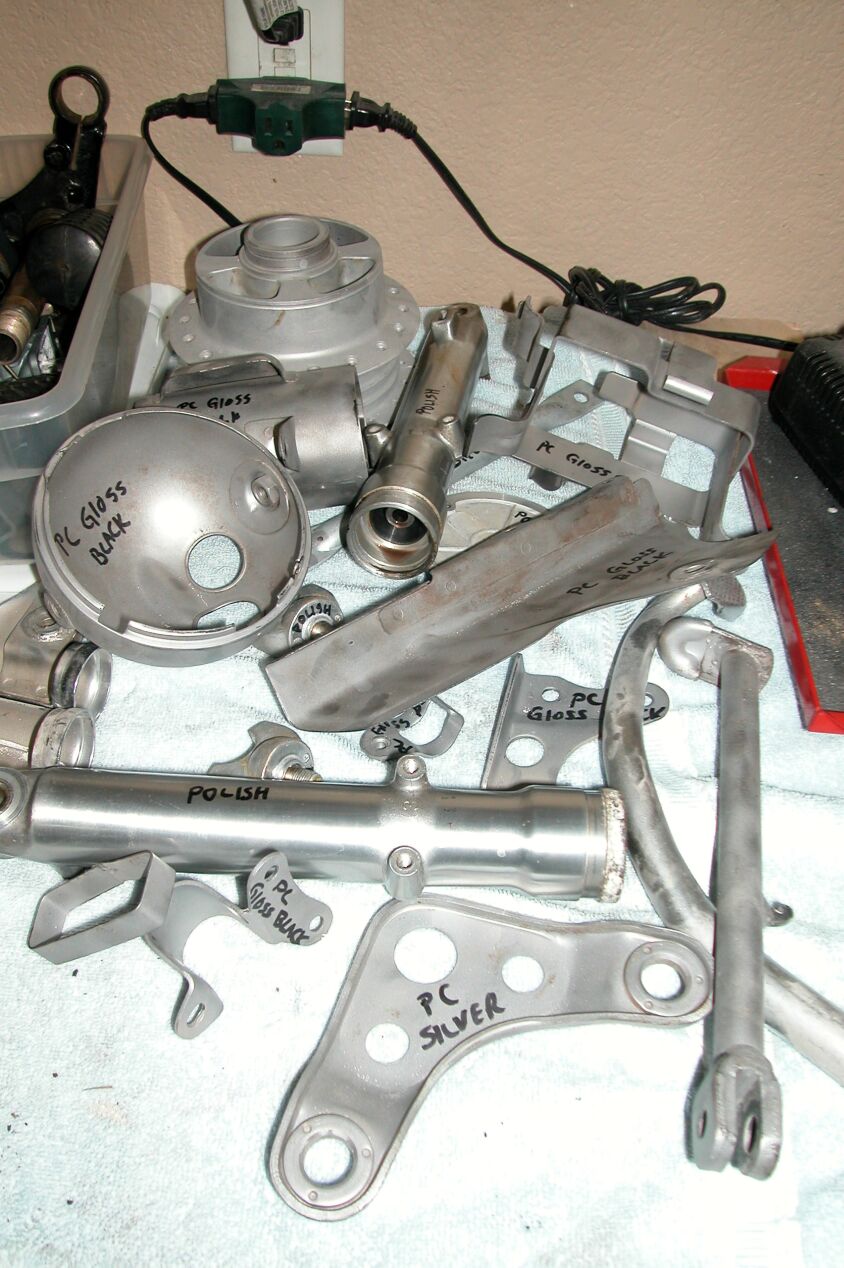

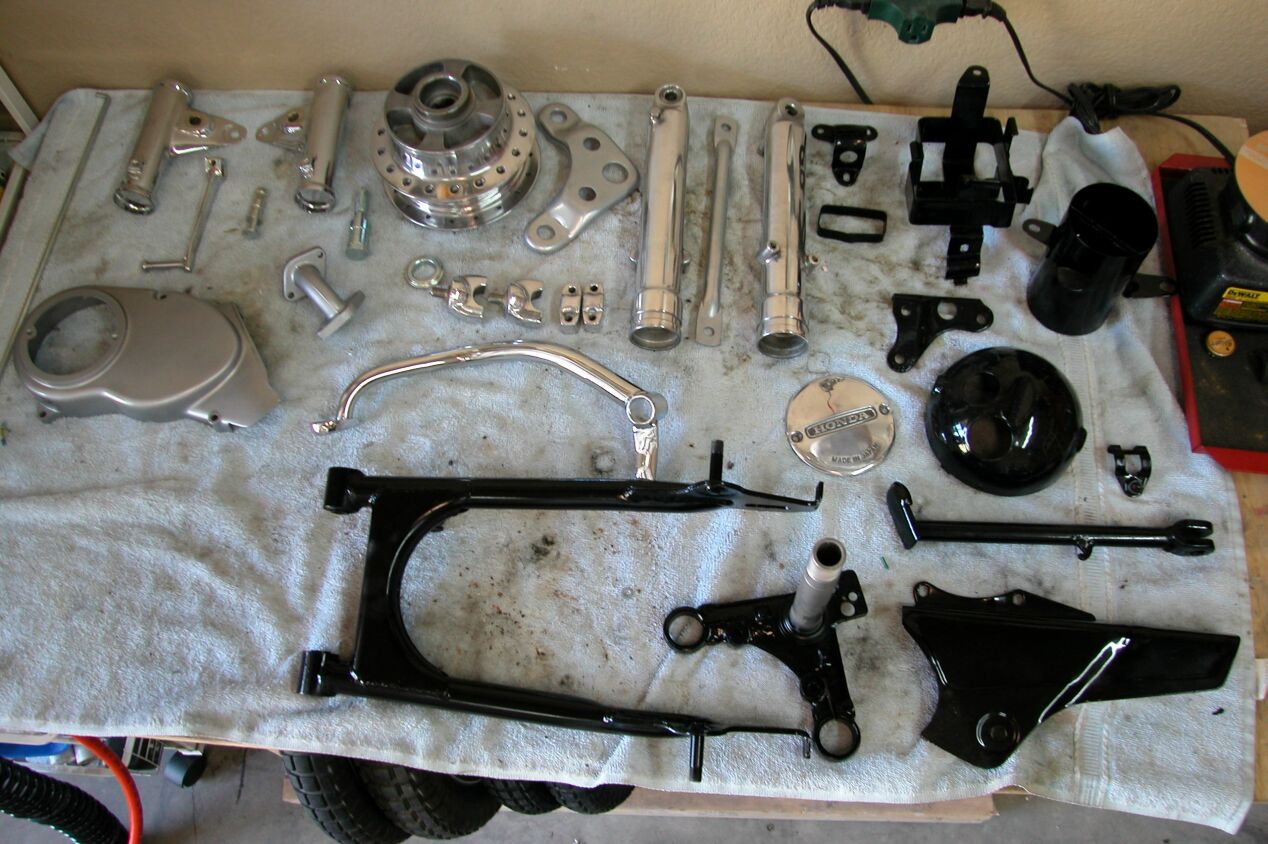

Parts ready for powder coating, polishing and chroming

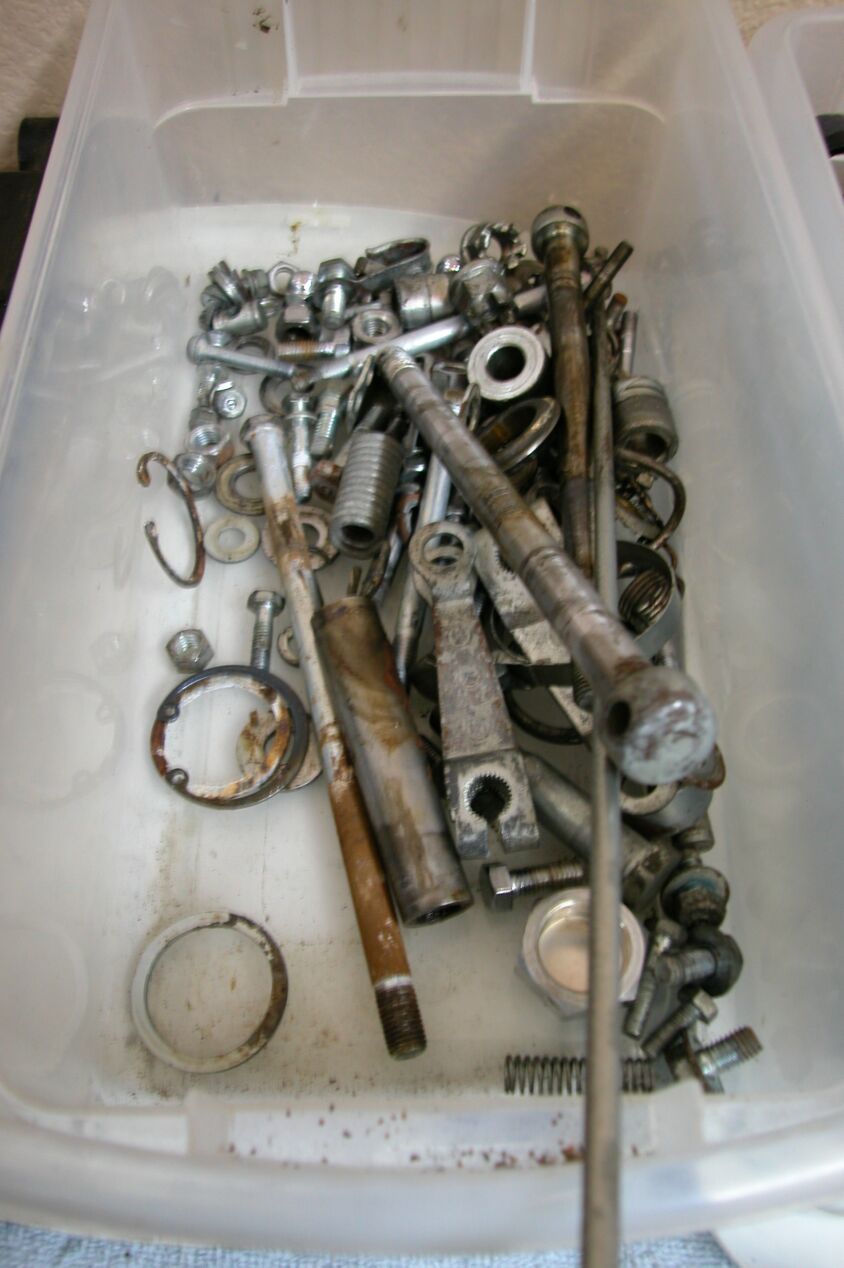

All the hardware ready for stripping and zinc plating

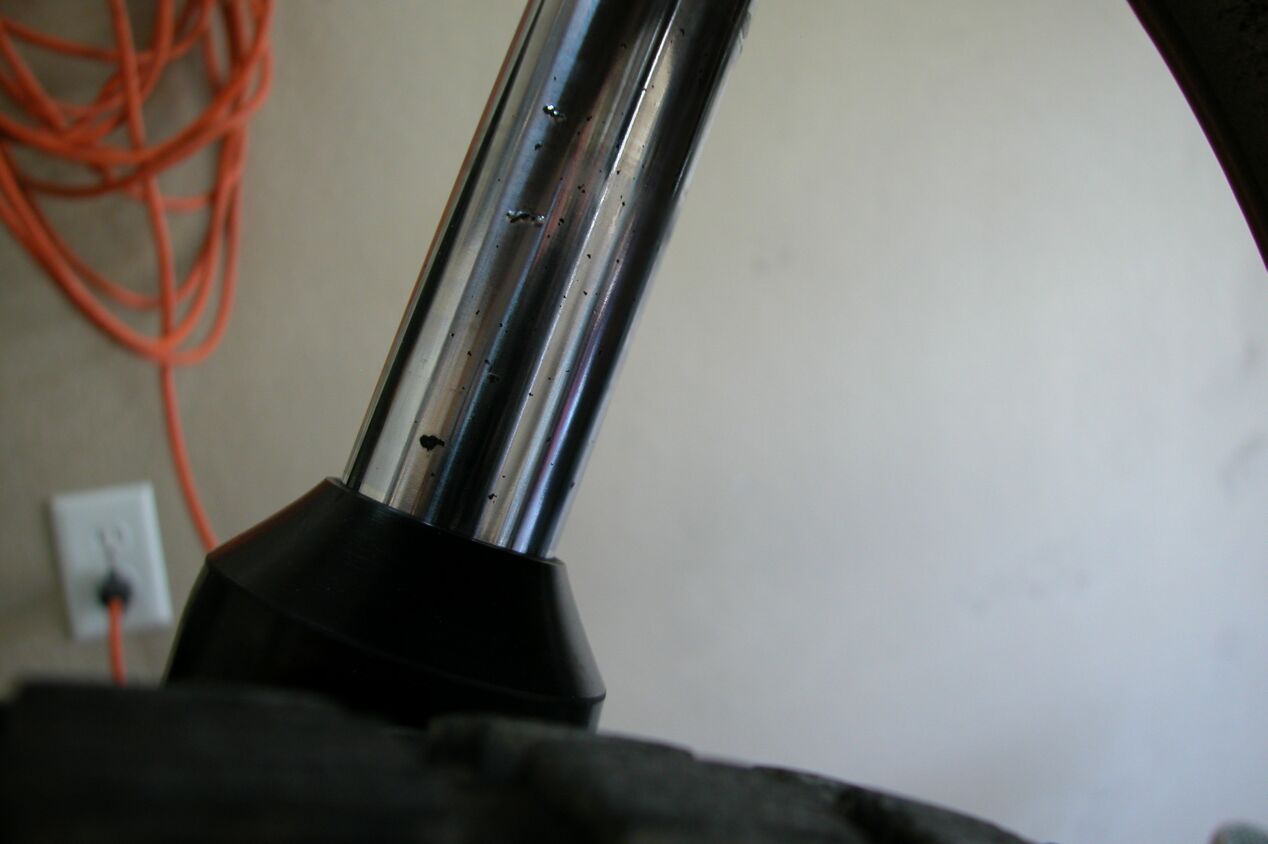

Also, the front forks were pretty trashed on the inside from water seepage.

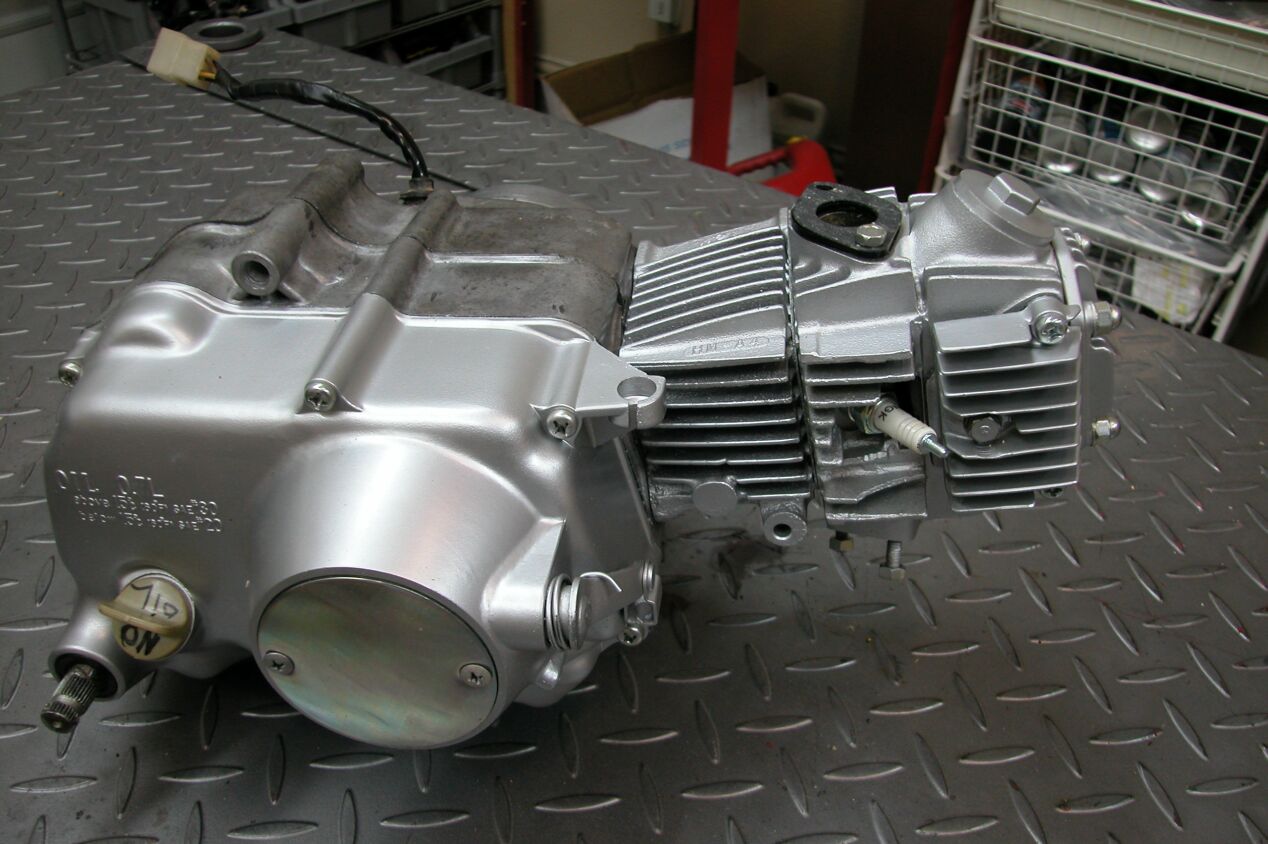

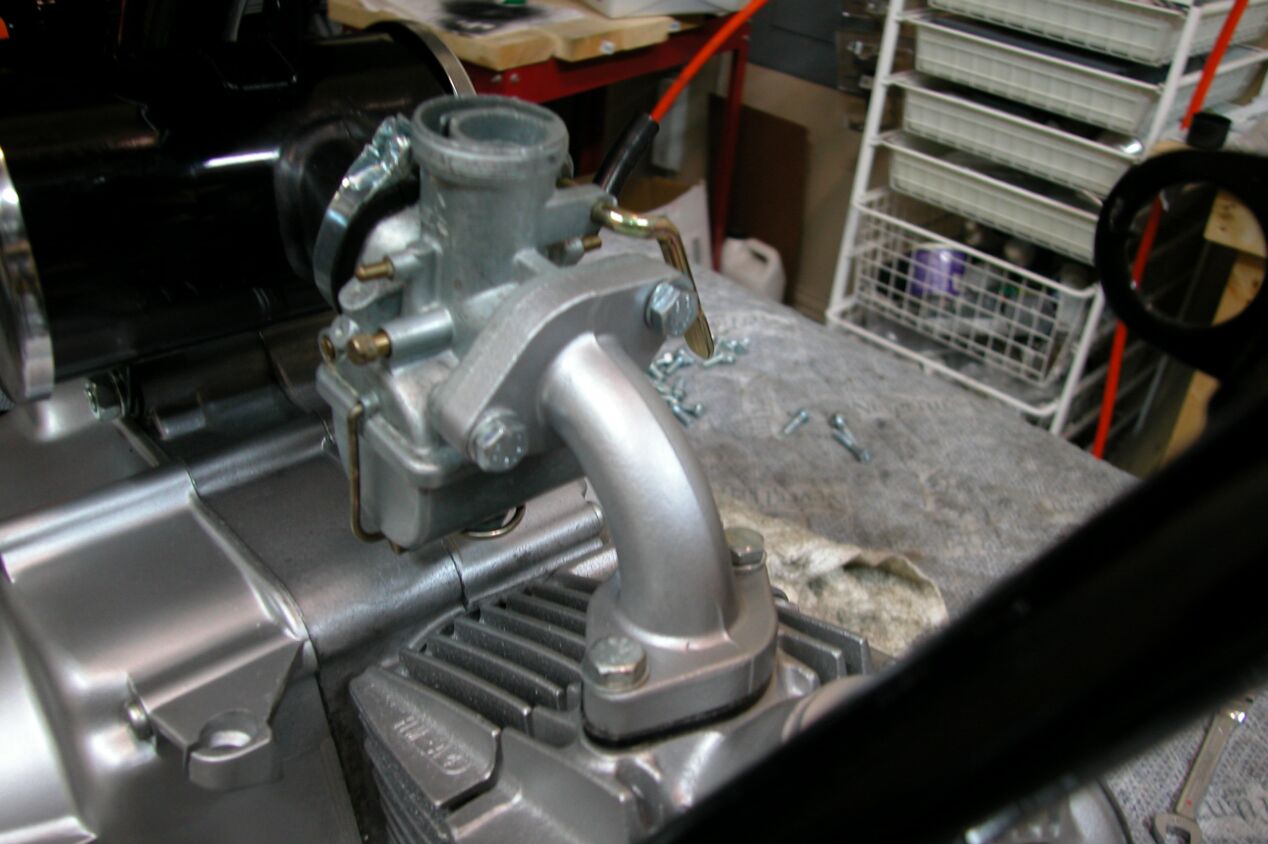

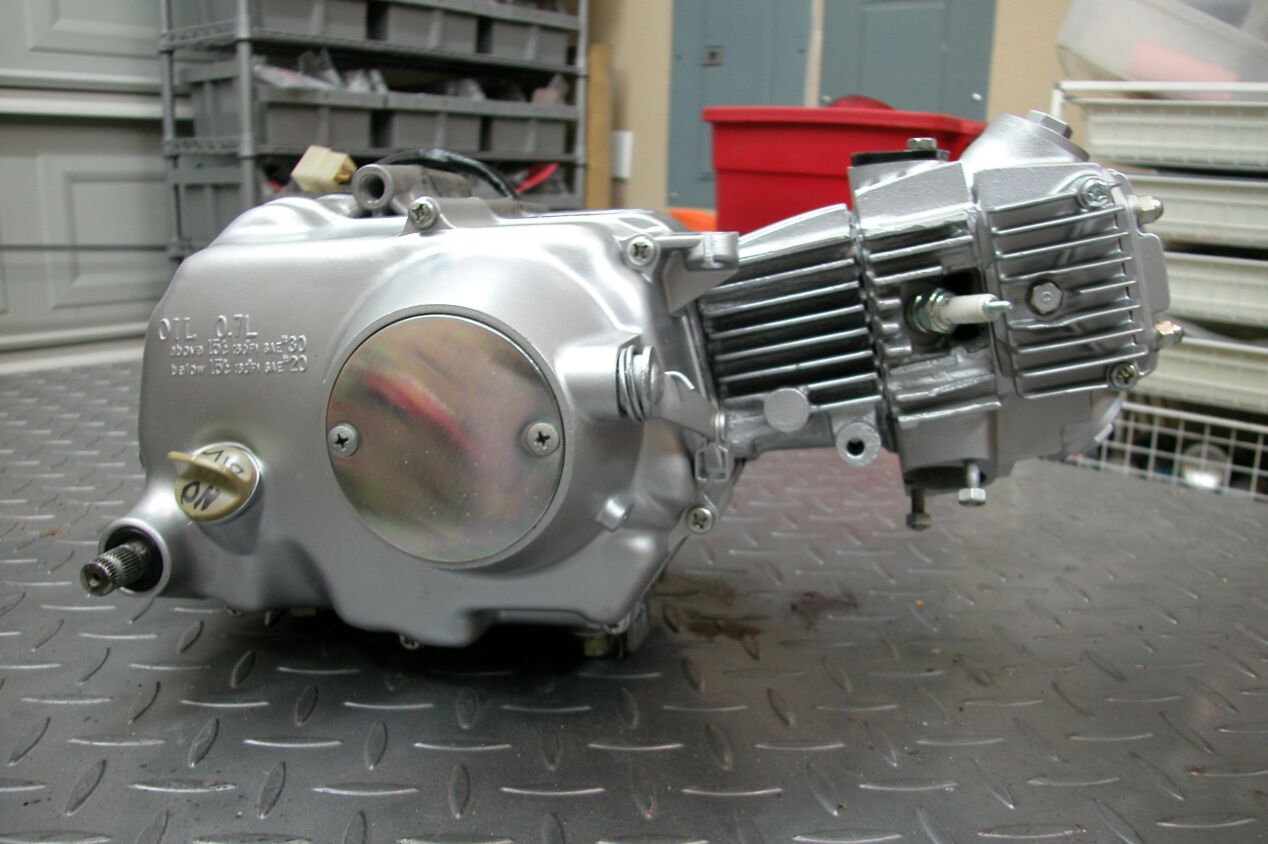

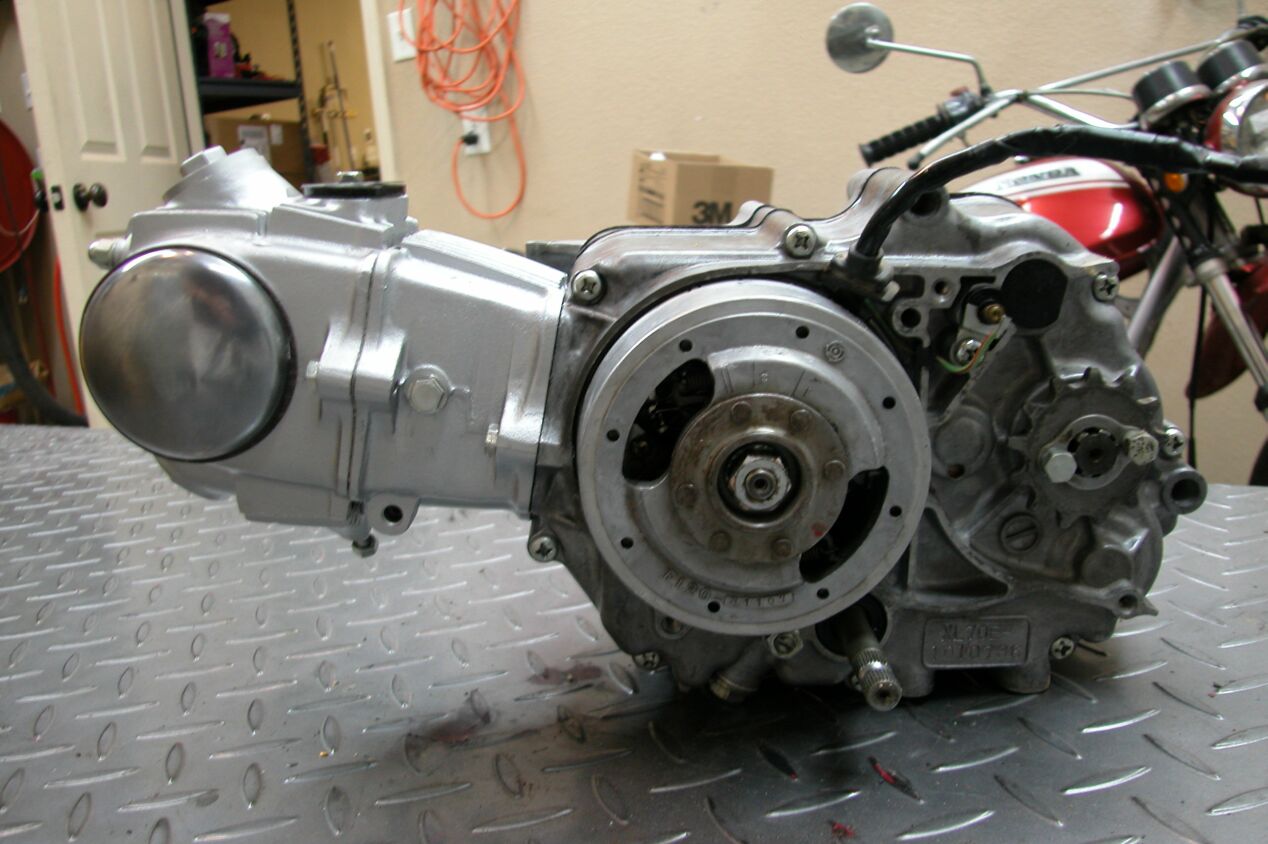

Here's the engine all restored and rebuilt.

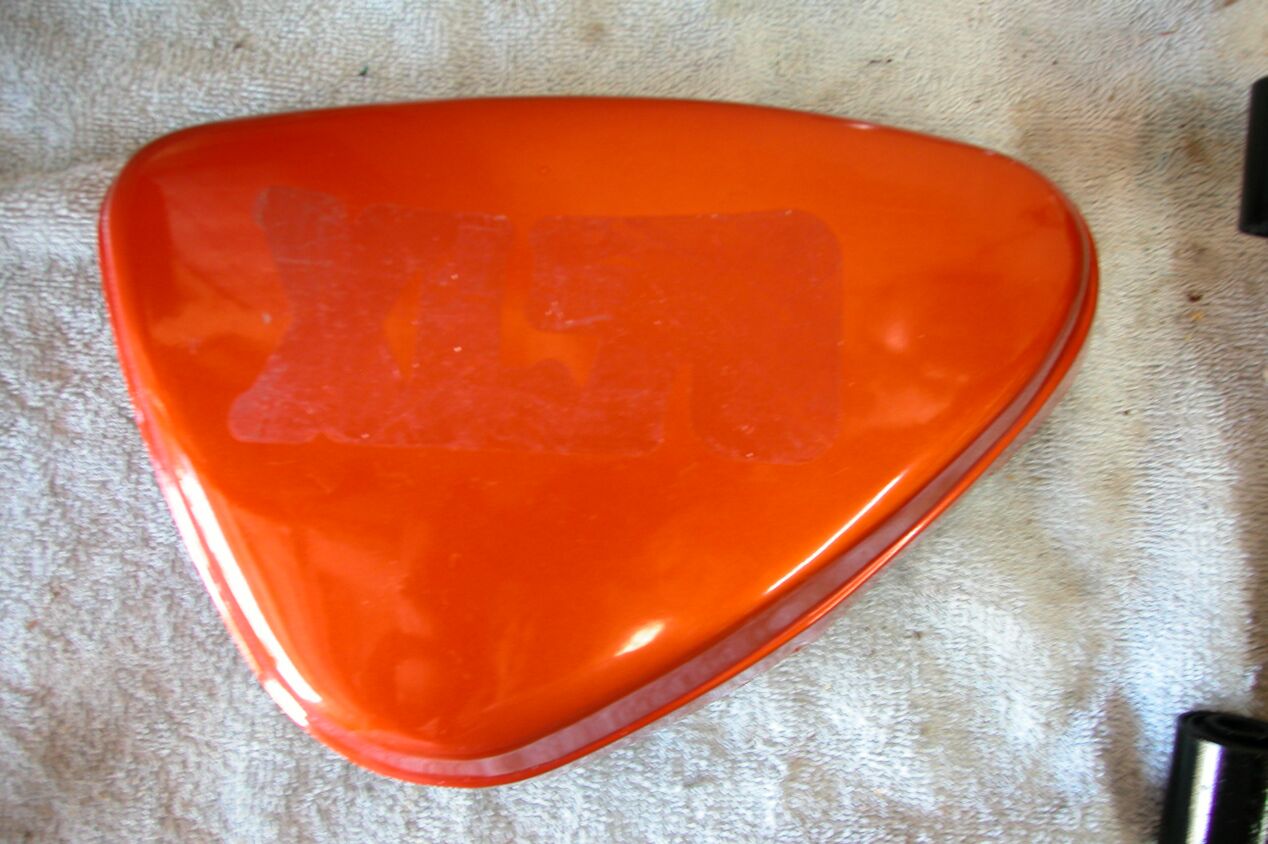

Managed to get the old sticker off of the side cover. This is the one that had the scratch running through it. I had Reproduction Decals make a new one.

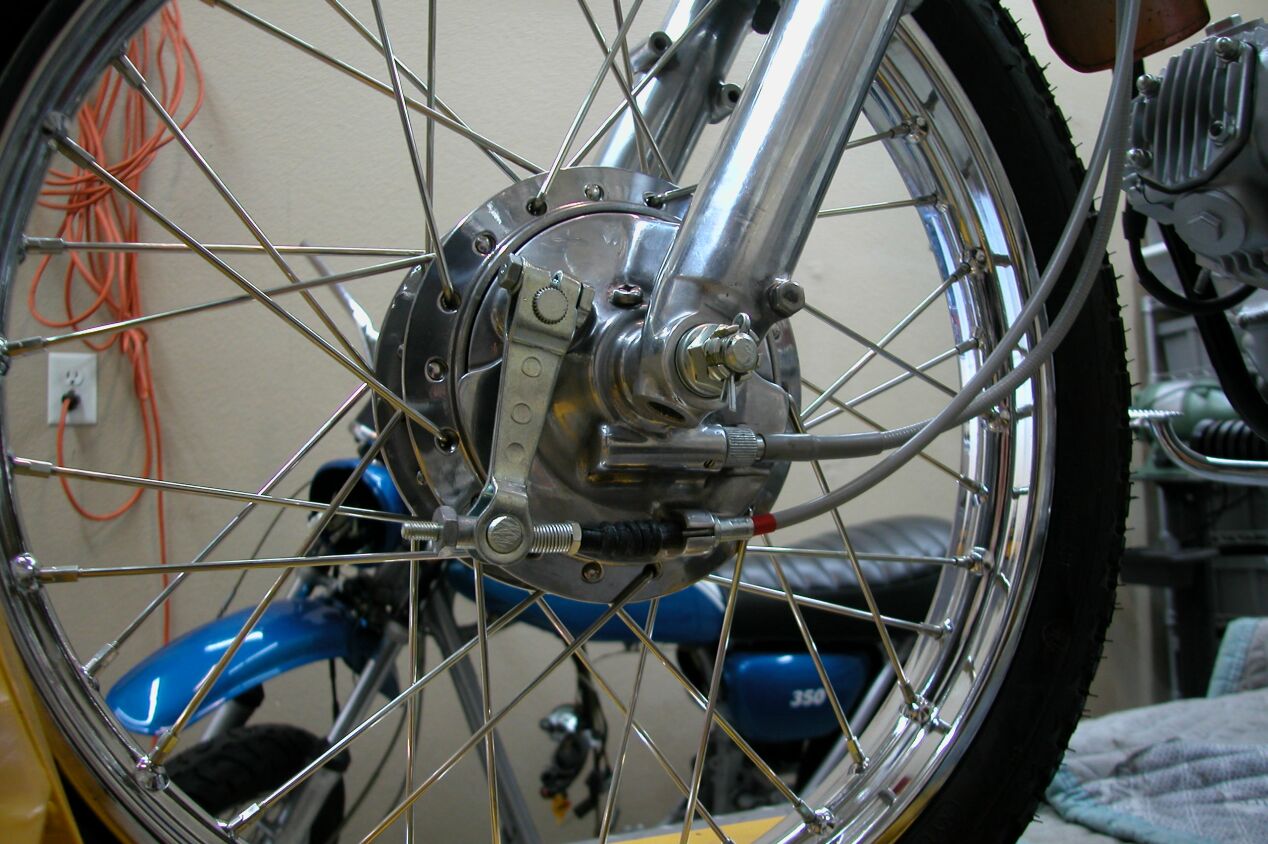

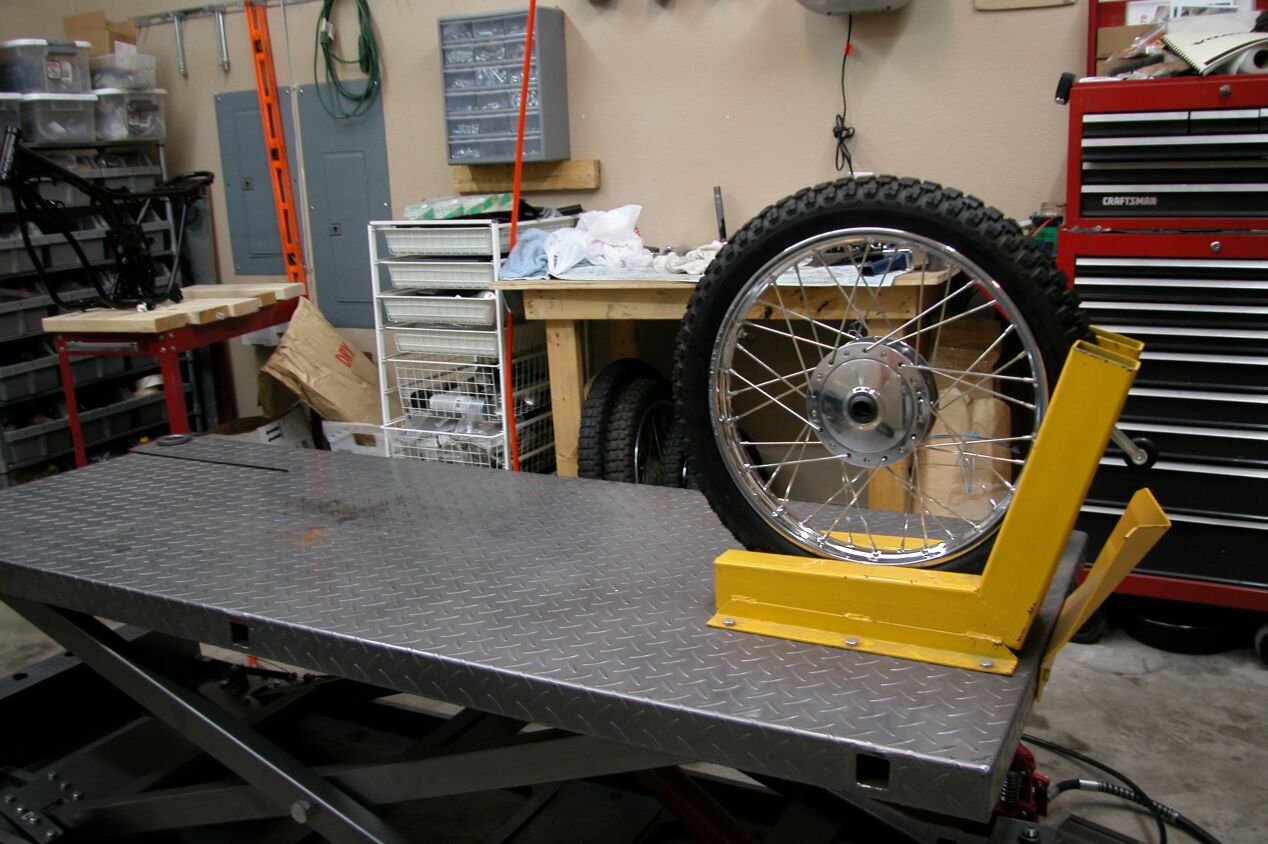

Front wheel in the clamps and ready to start the assembly process.

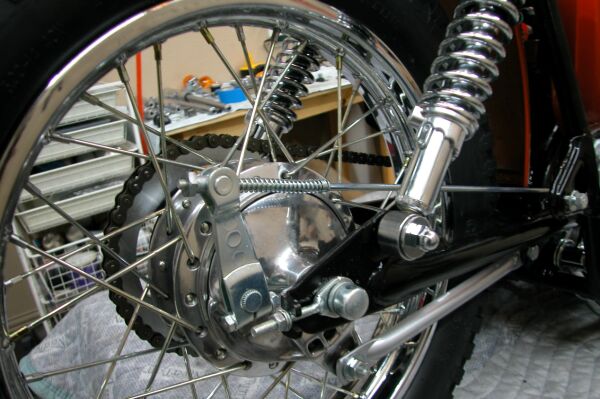

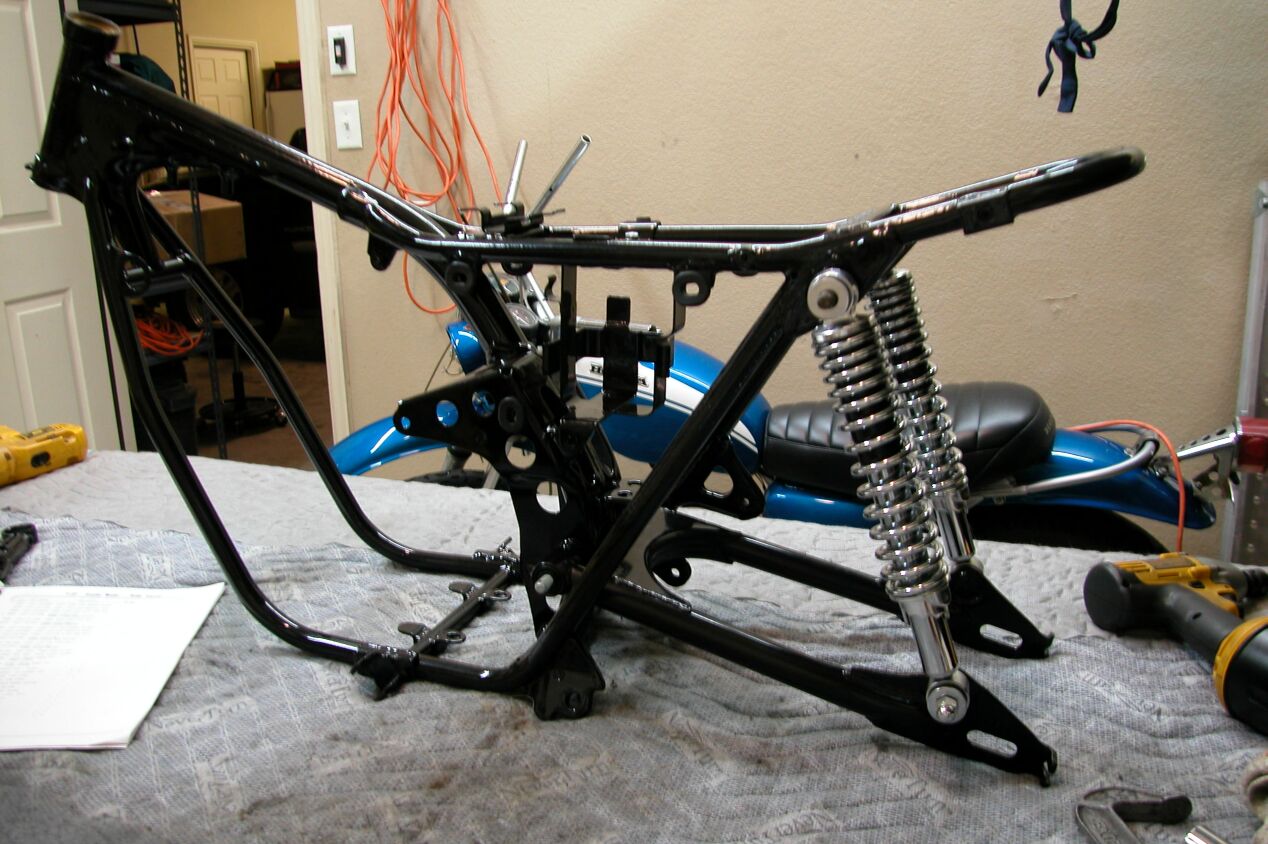

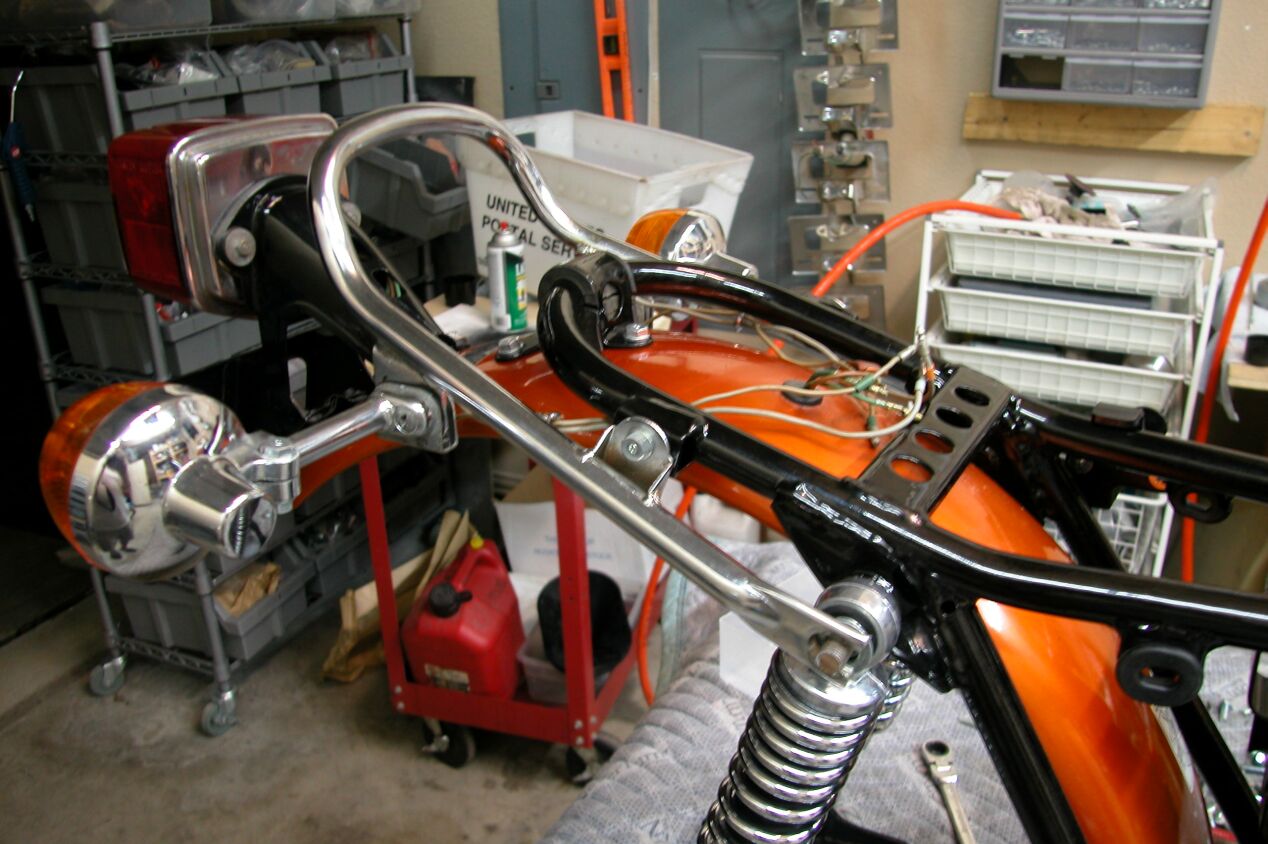

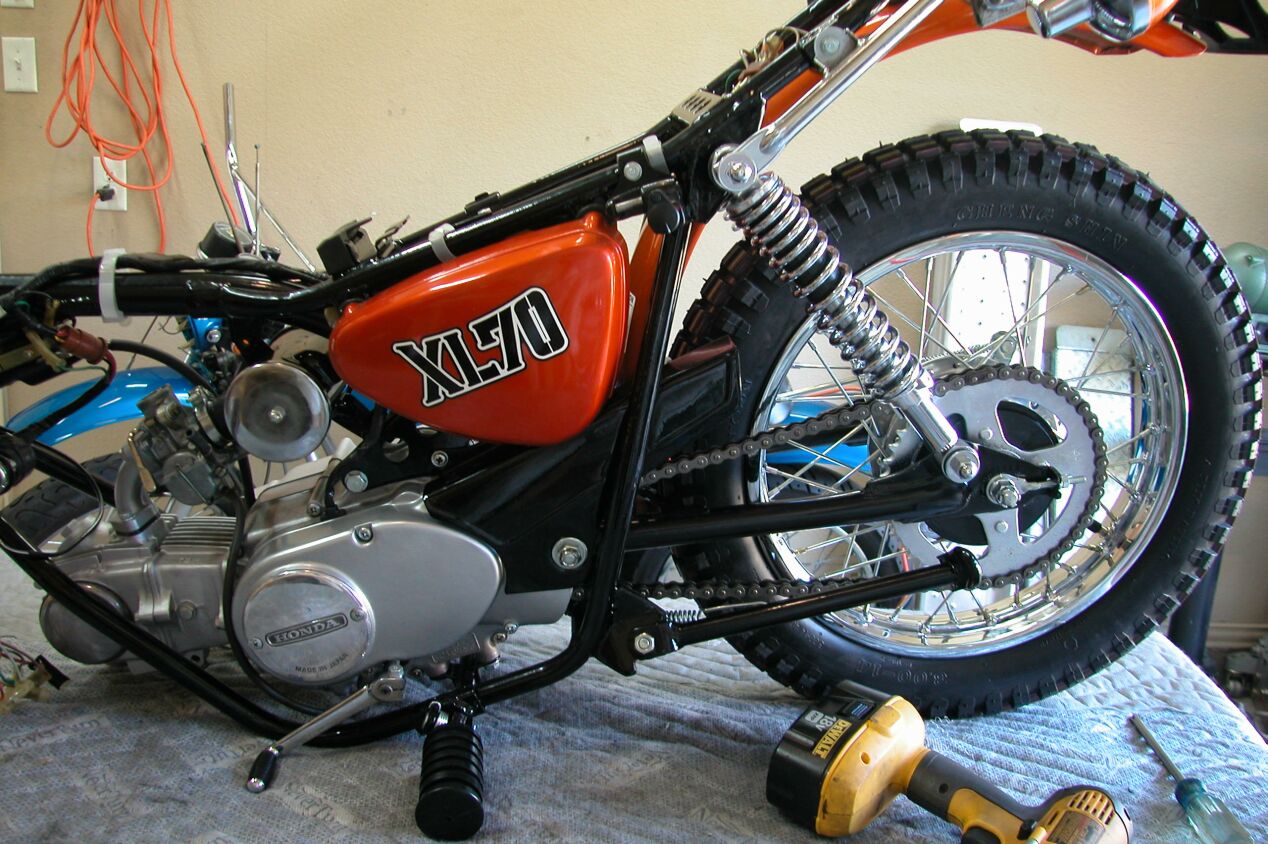

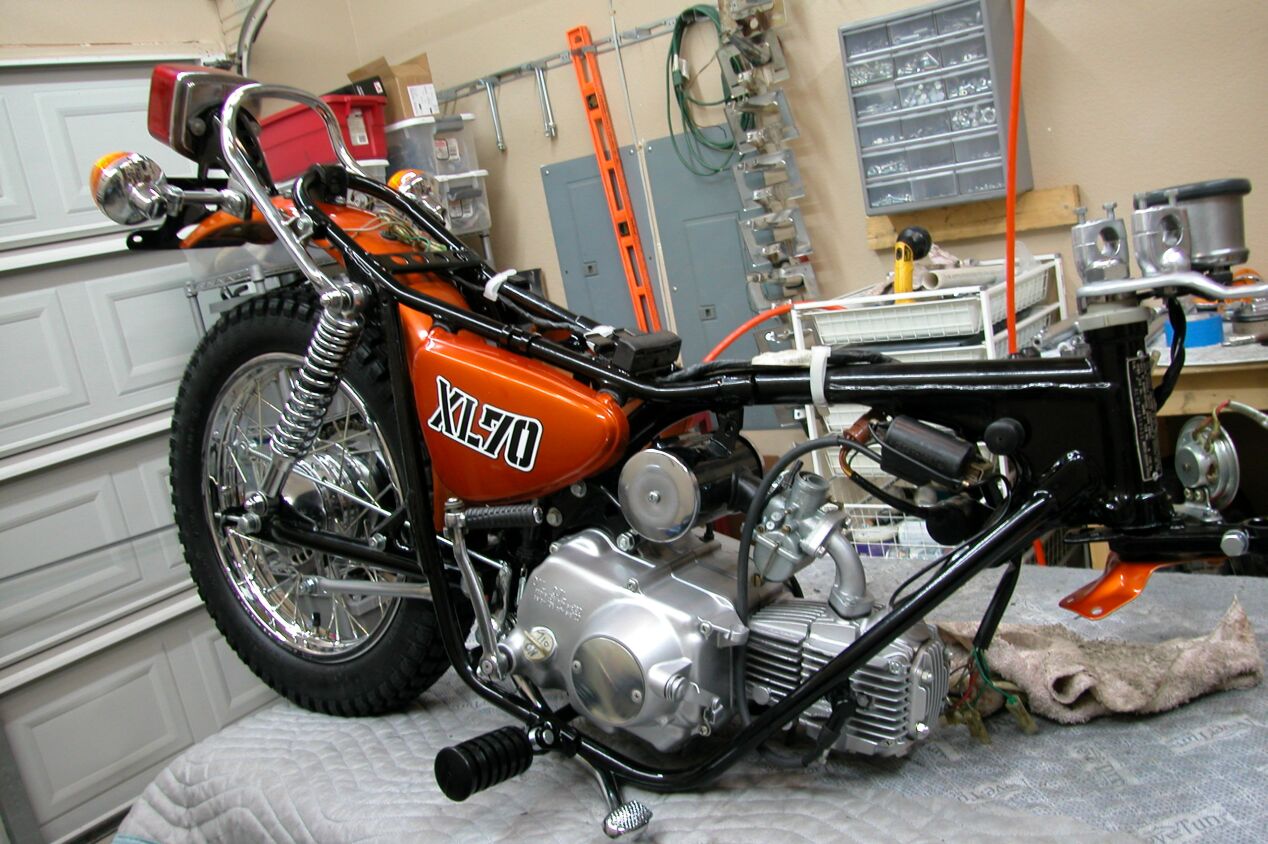

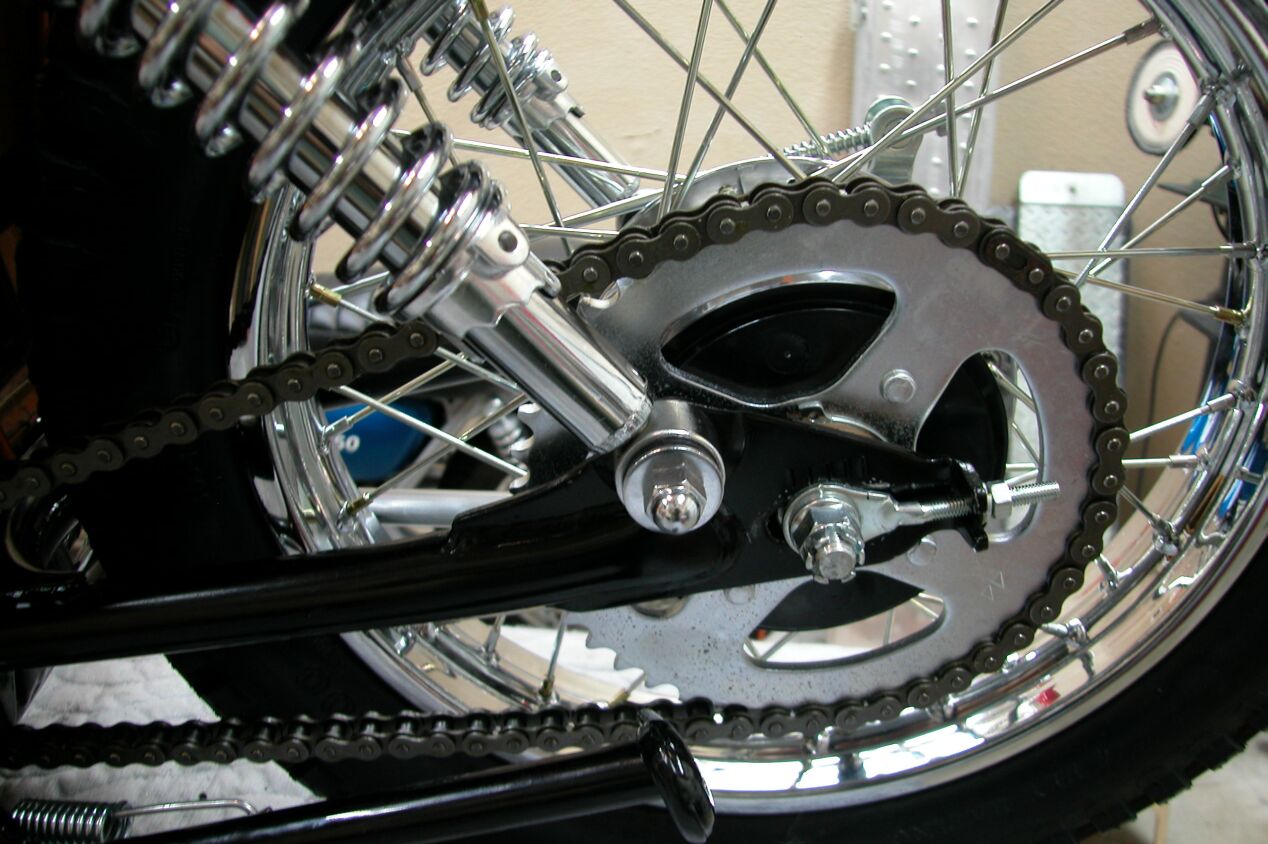

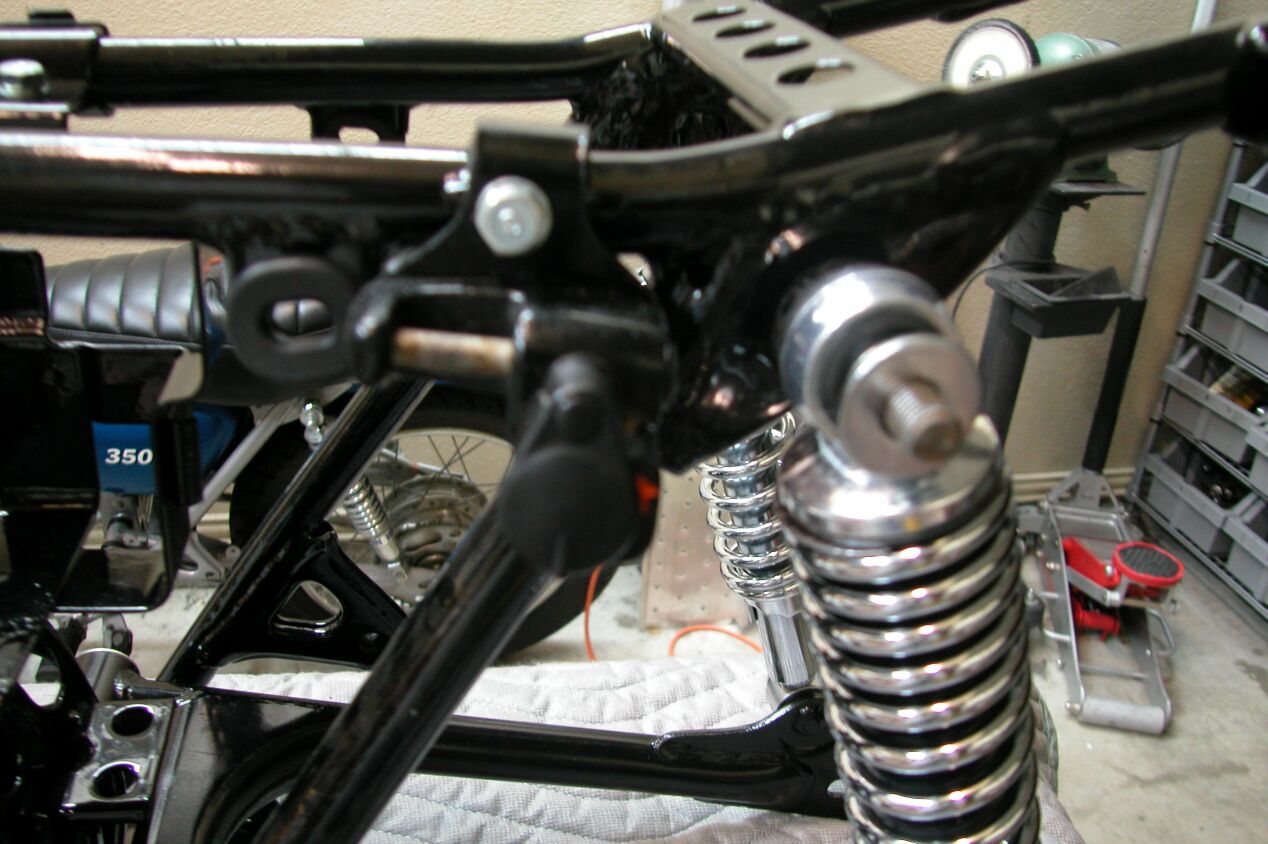

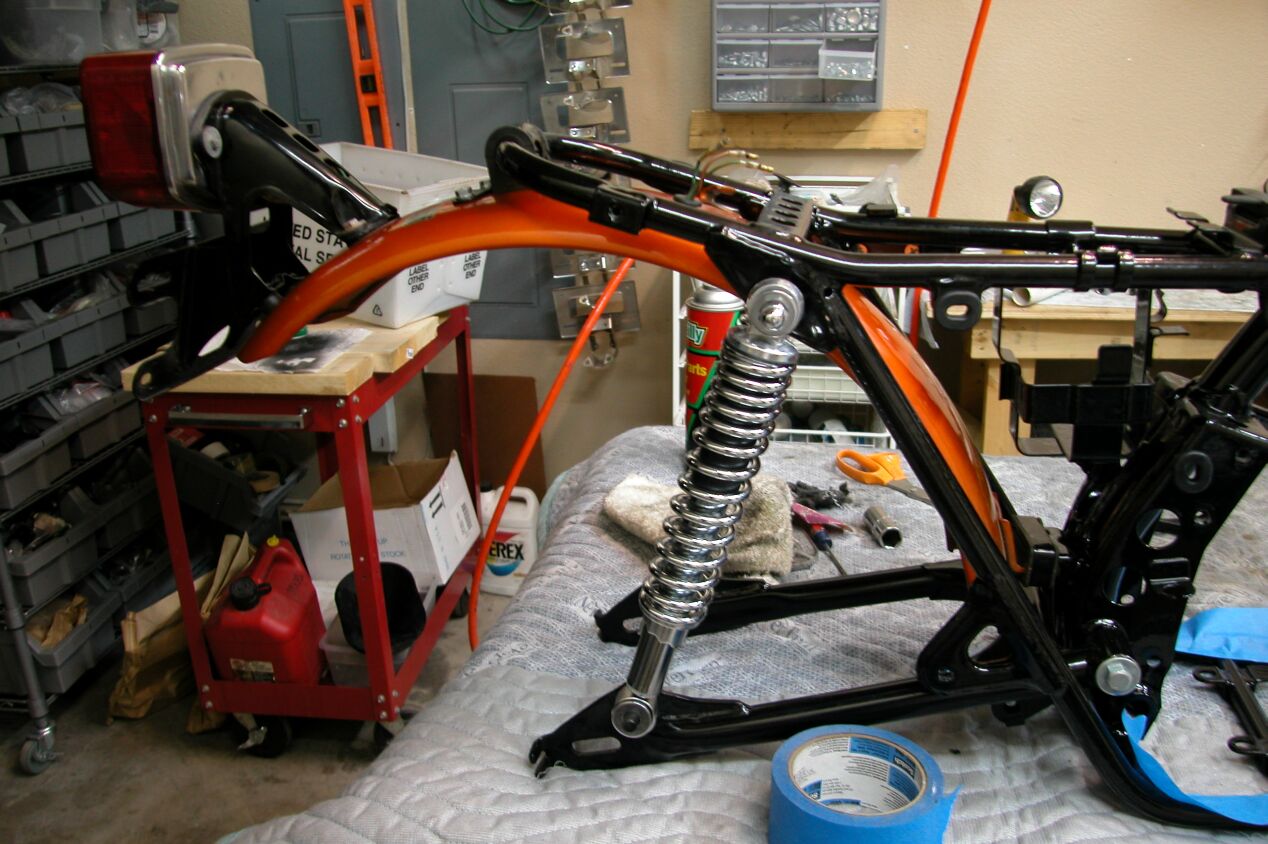

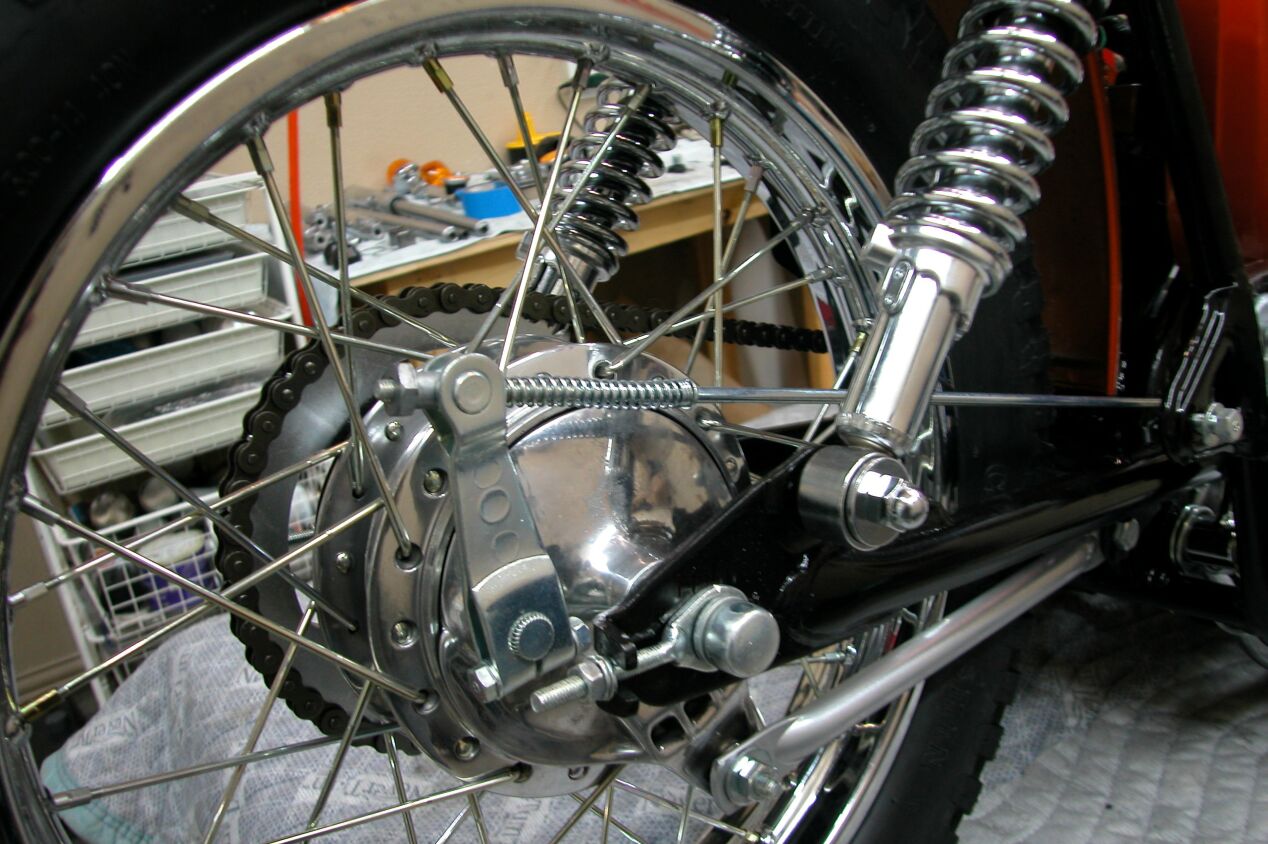

Swingarm and rear shocks in place

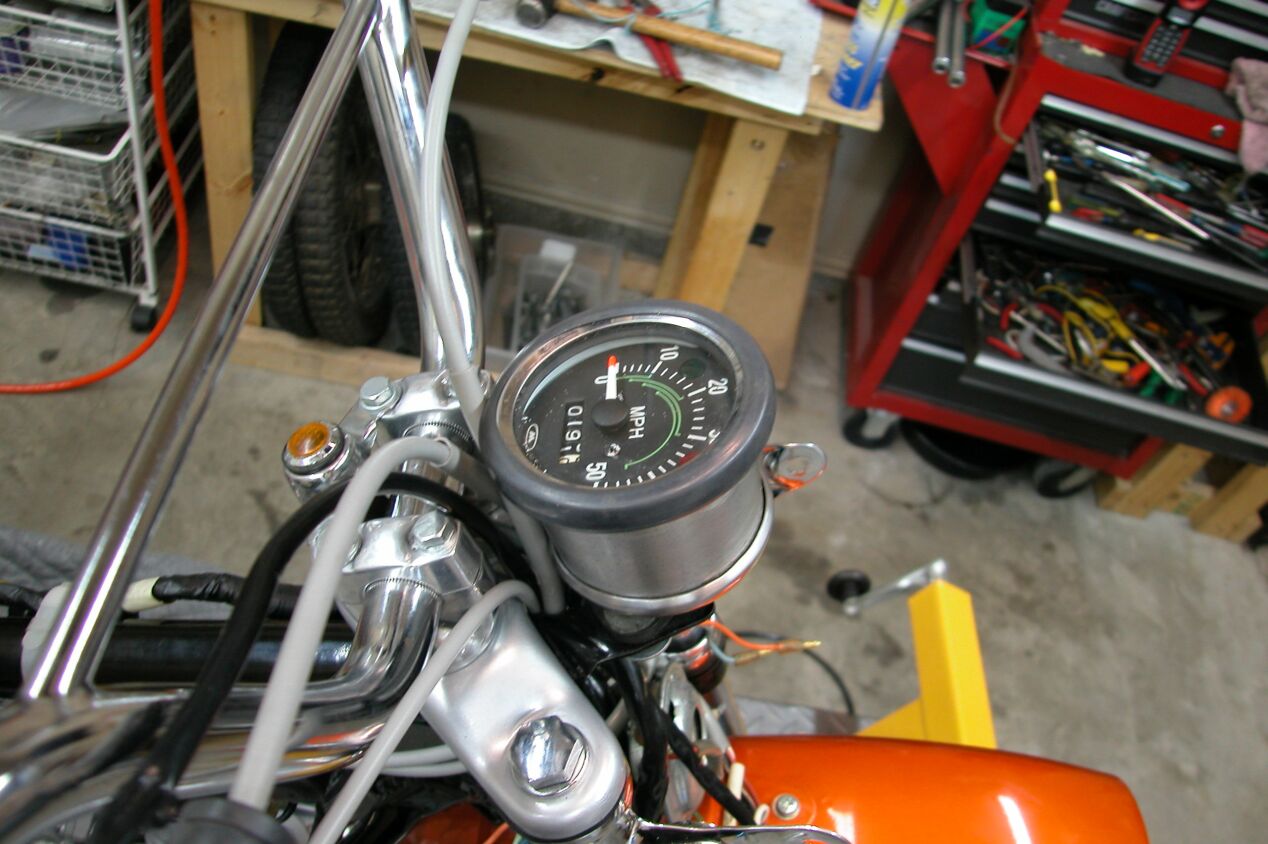

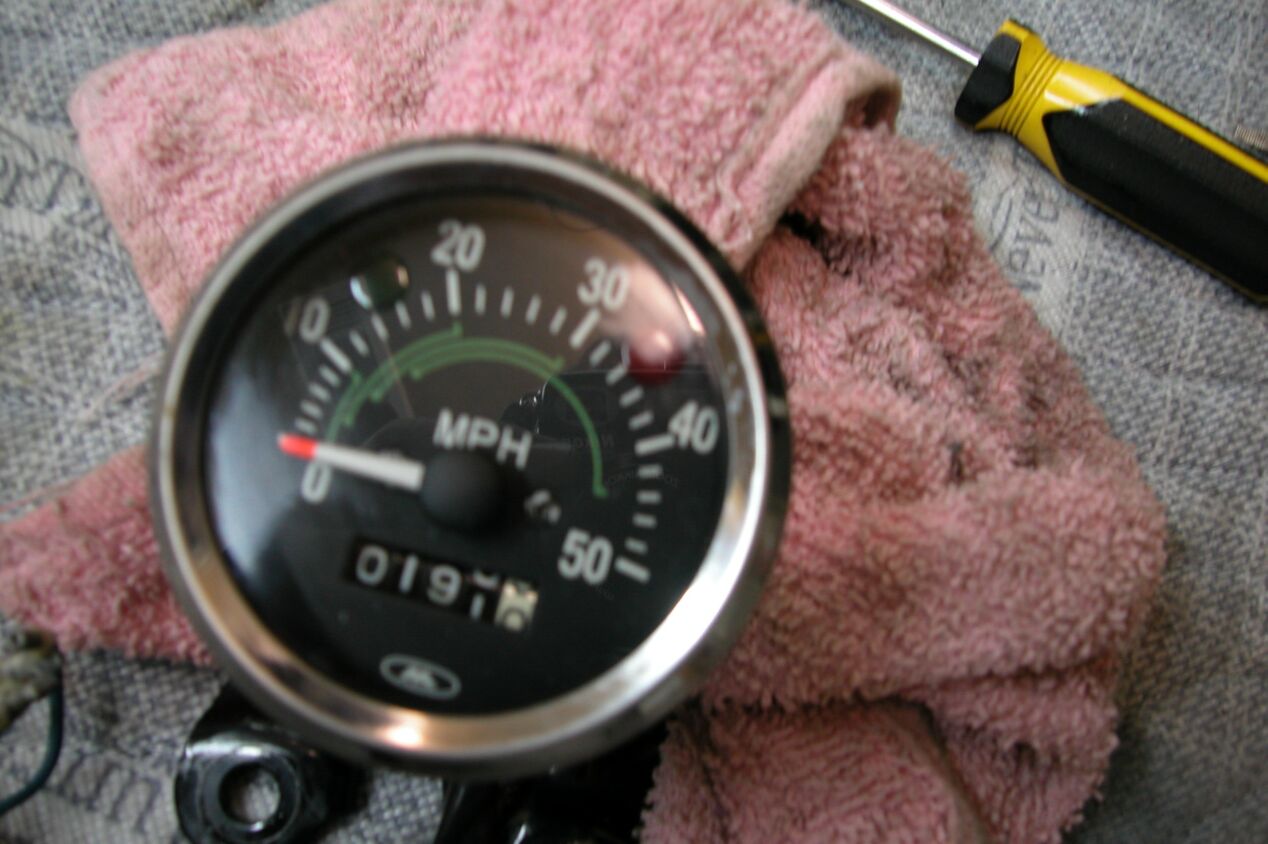

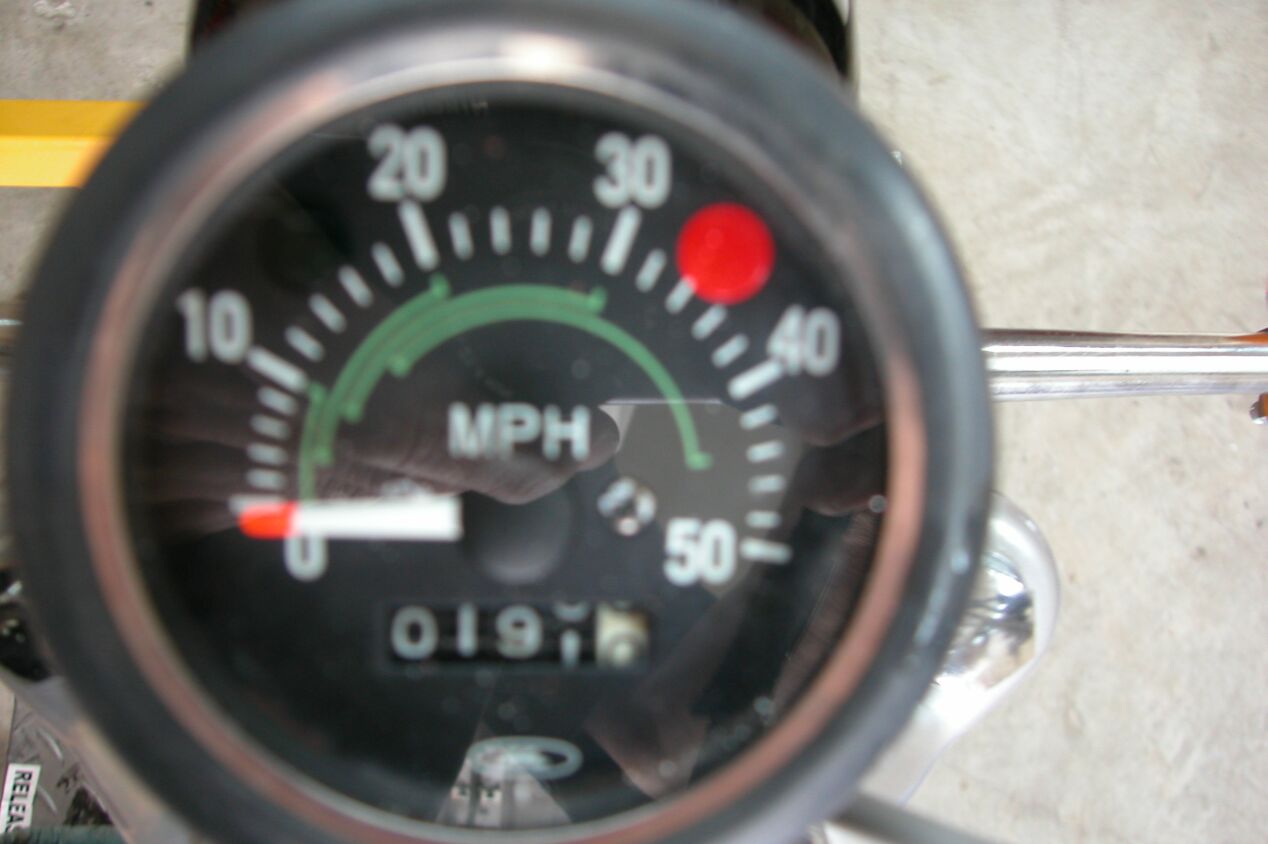

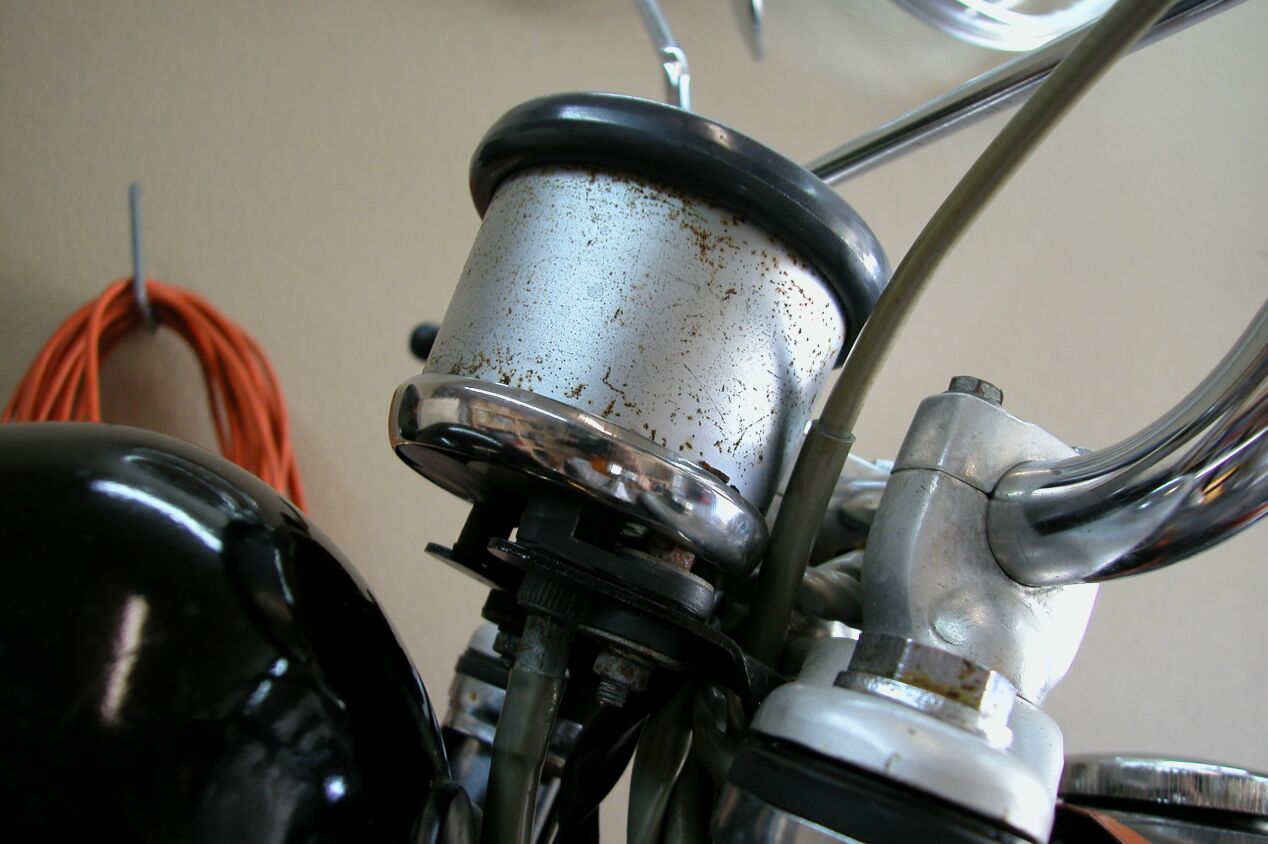

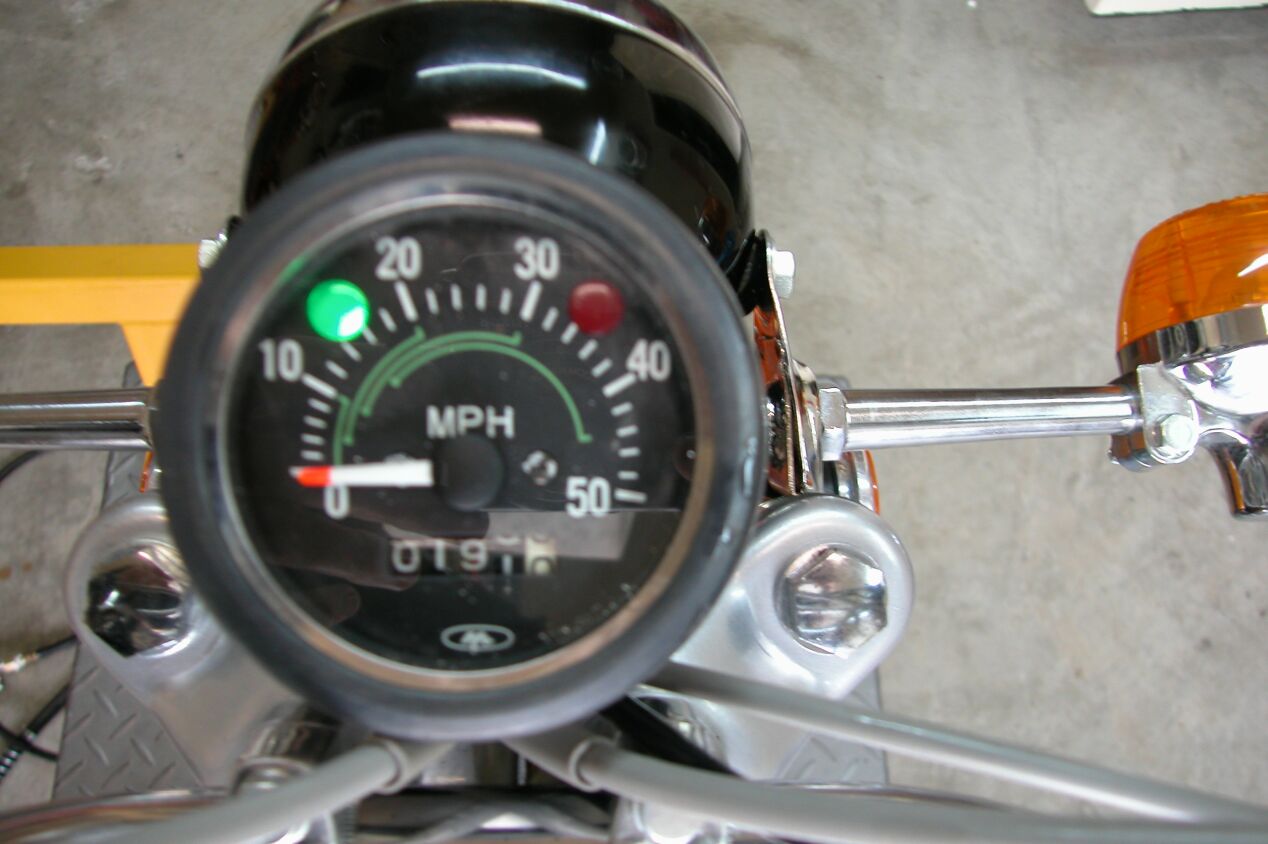

Remember how the speedometer was cloudy? Managed to get it clear......bad picture. It now looks nice.

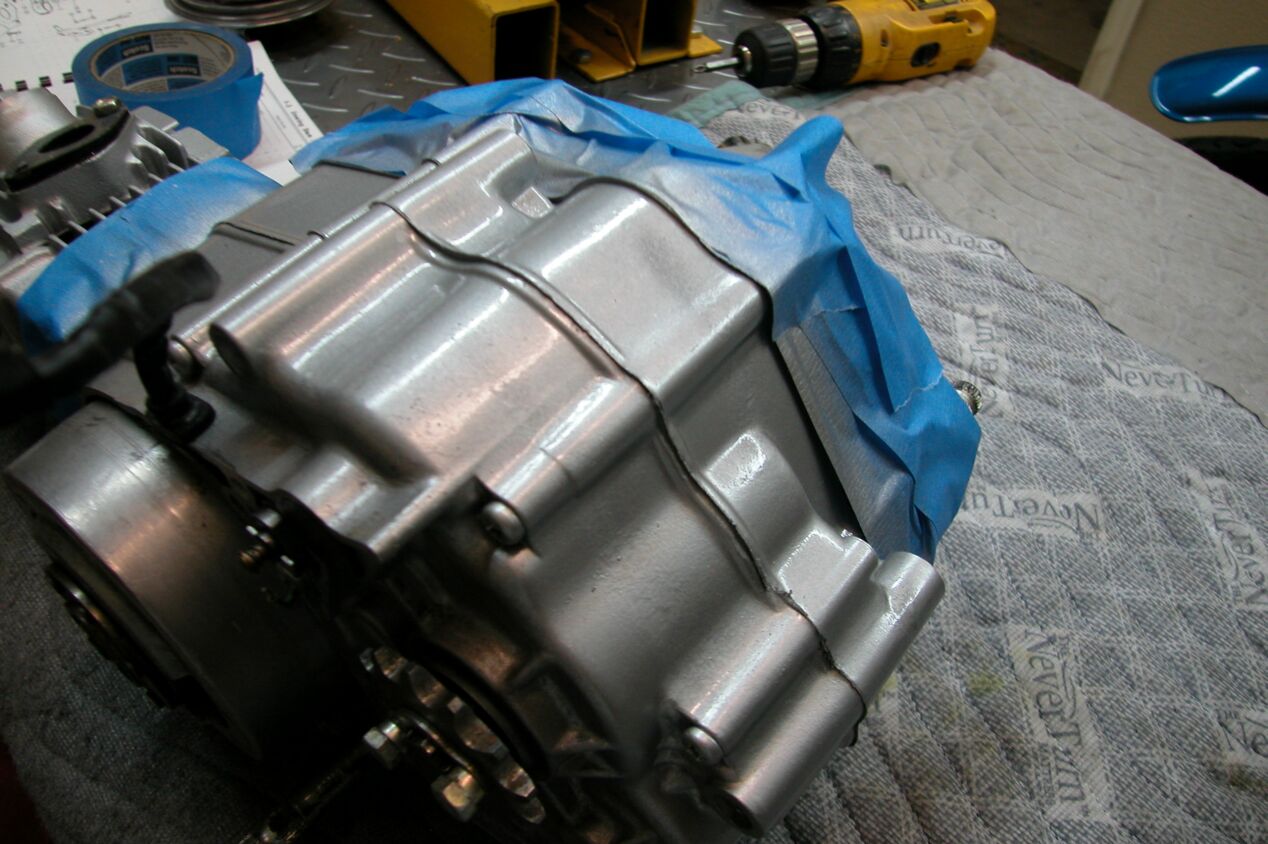

Center portion of engine now painted.............as requested.
No matter what I did, I couldn't get the pin of the helmet holder to come clean. May have to try to find a new one or just leave it off the bike.

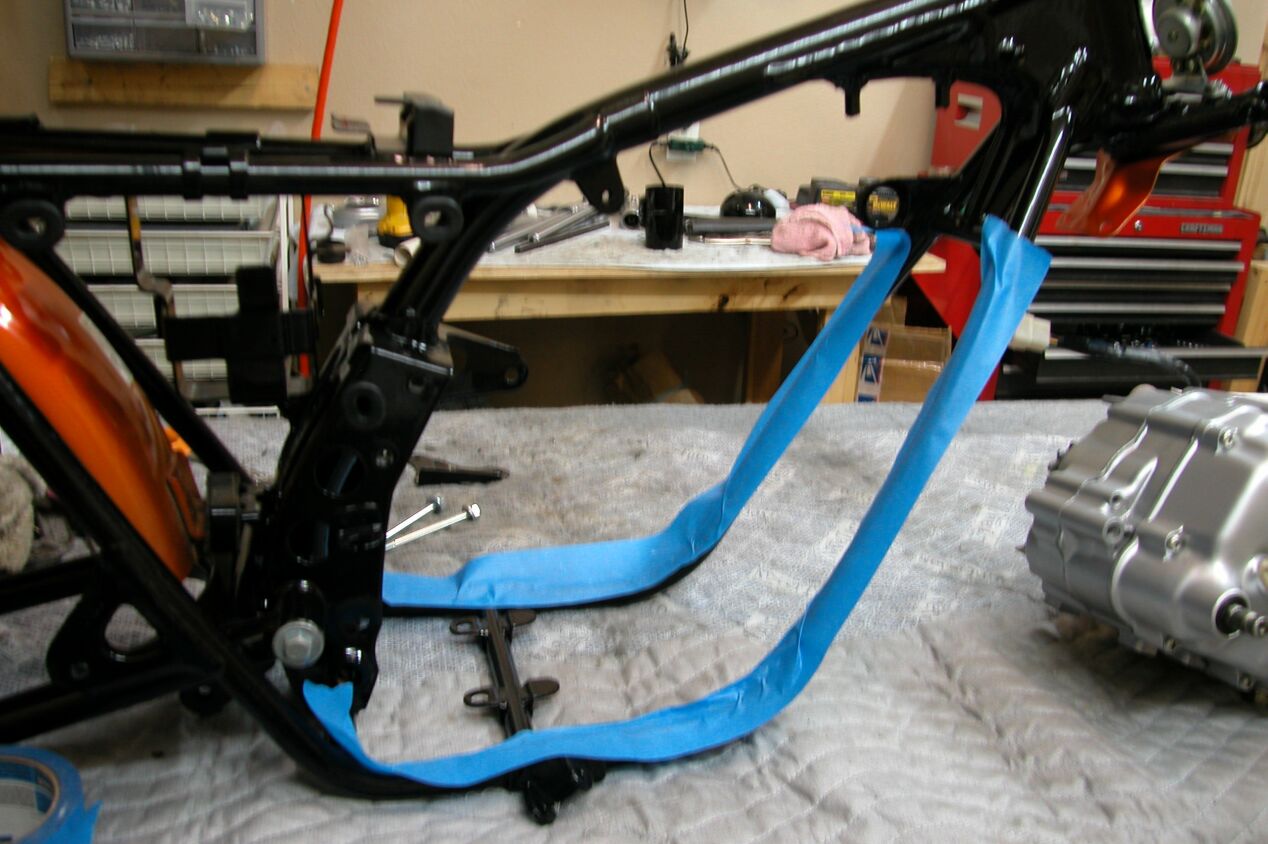

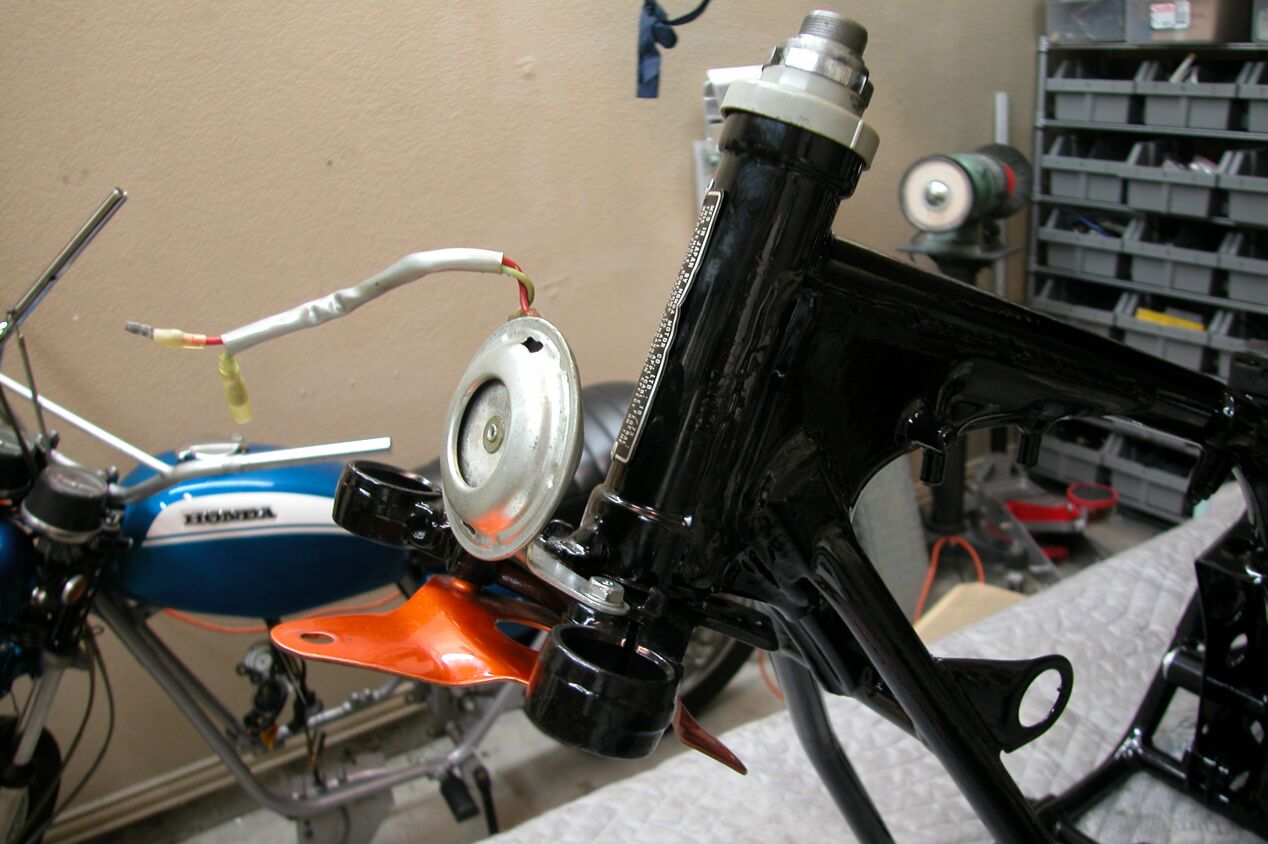

Ready for the engine..........frame protectors.

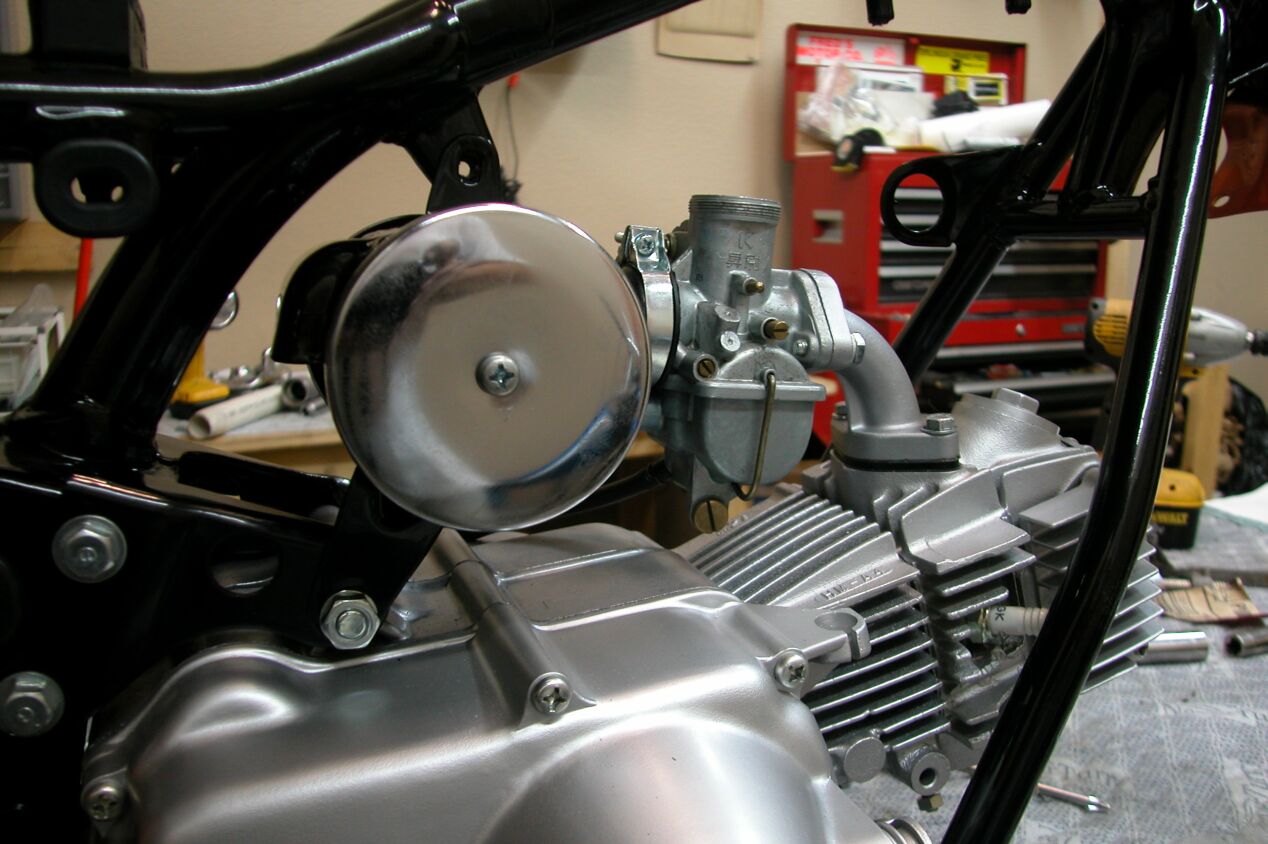

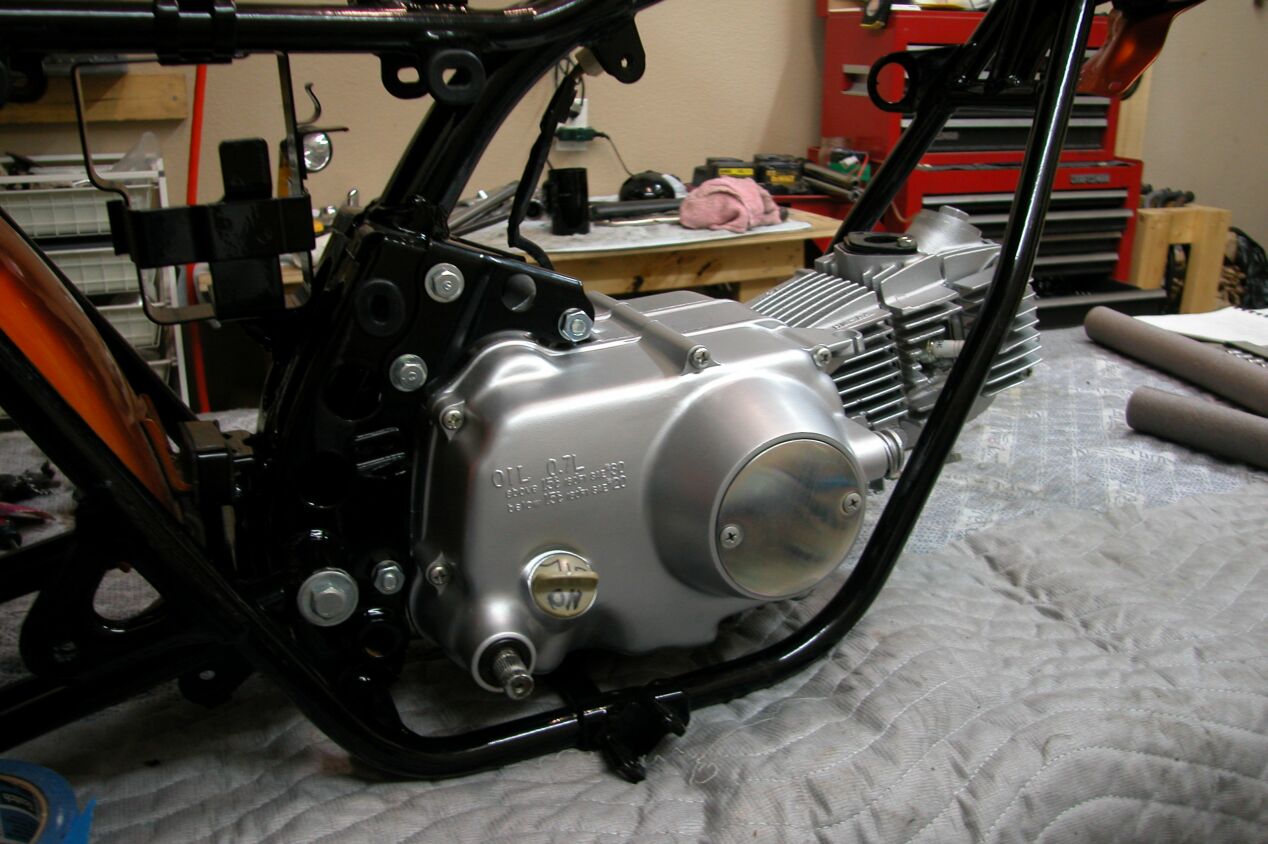

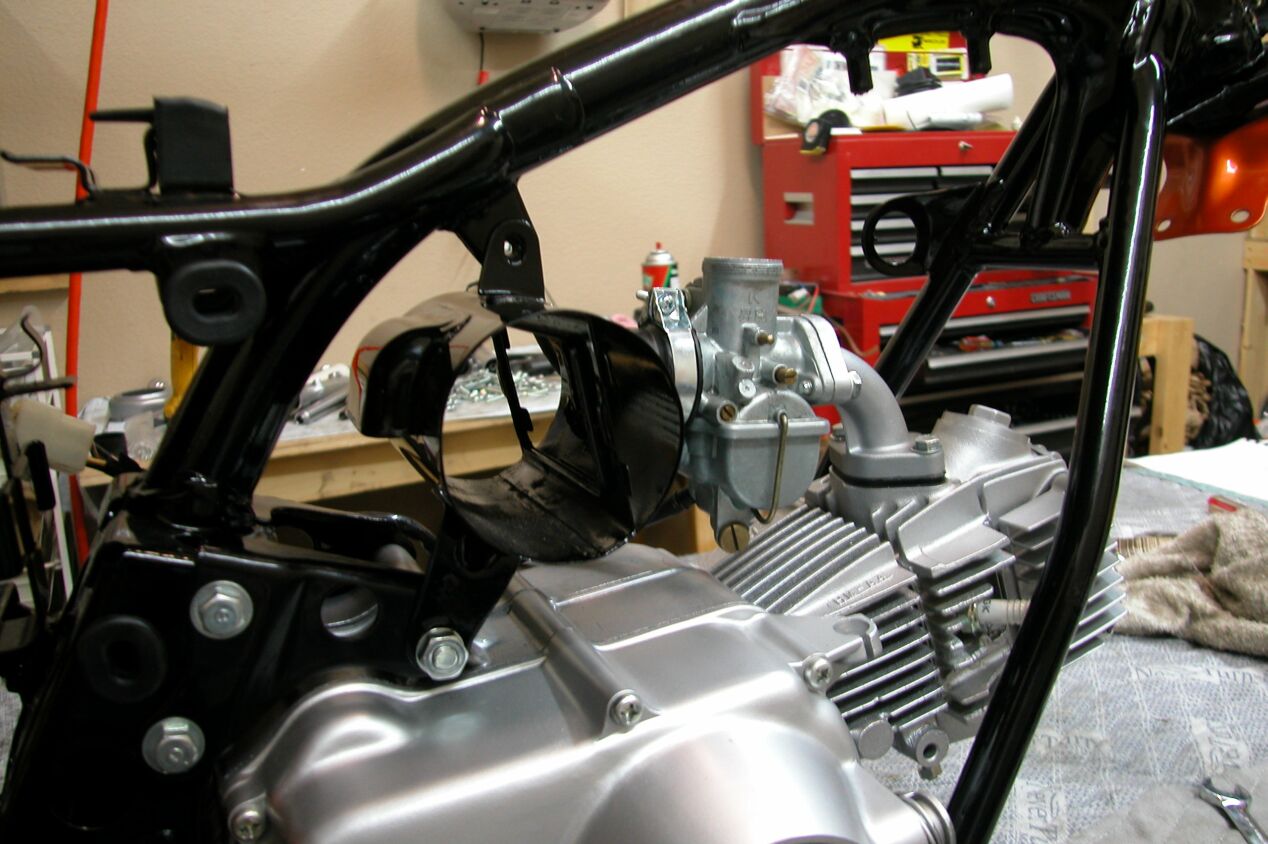

Slipped right in.

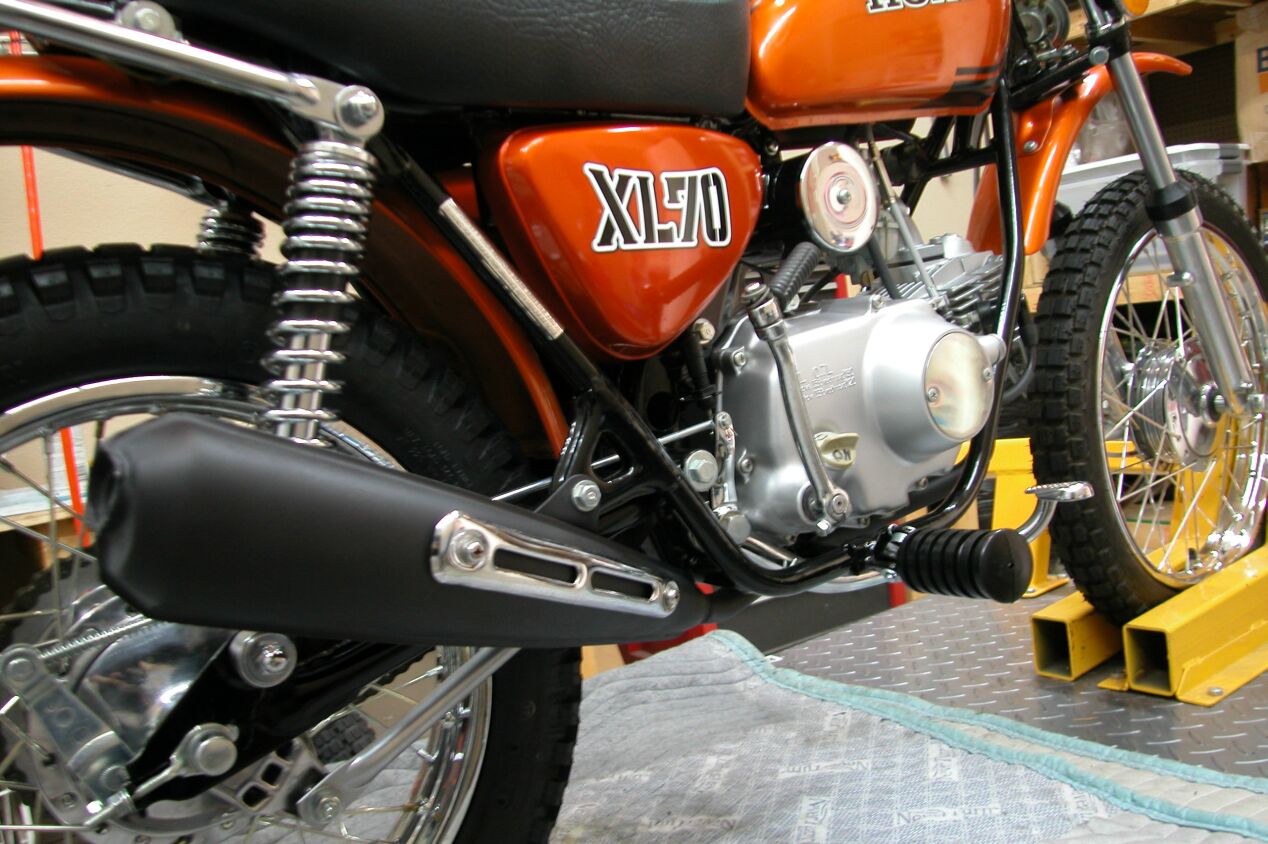

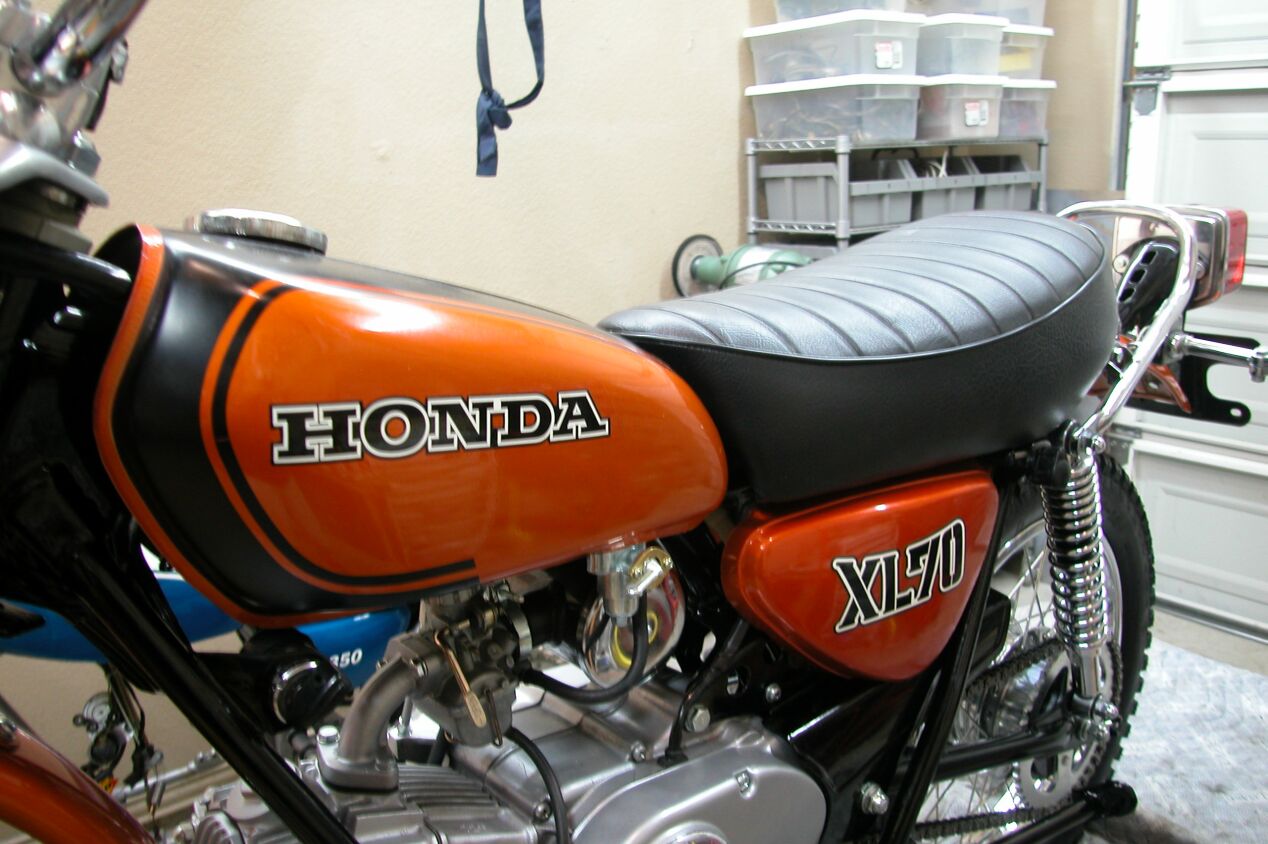

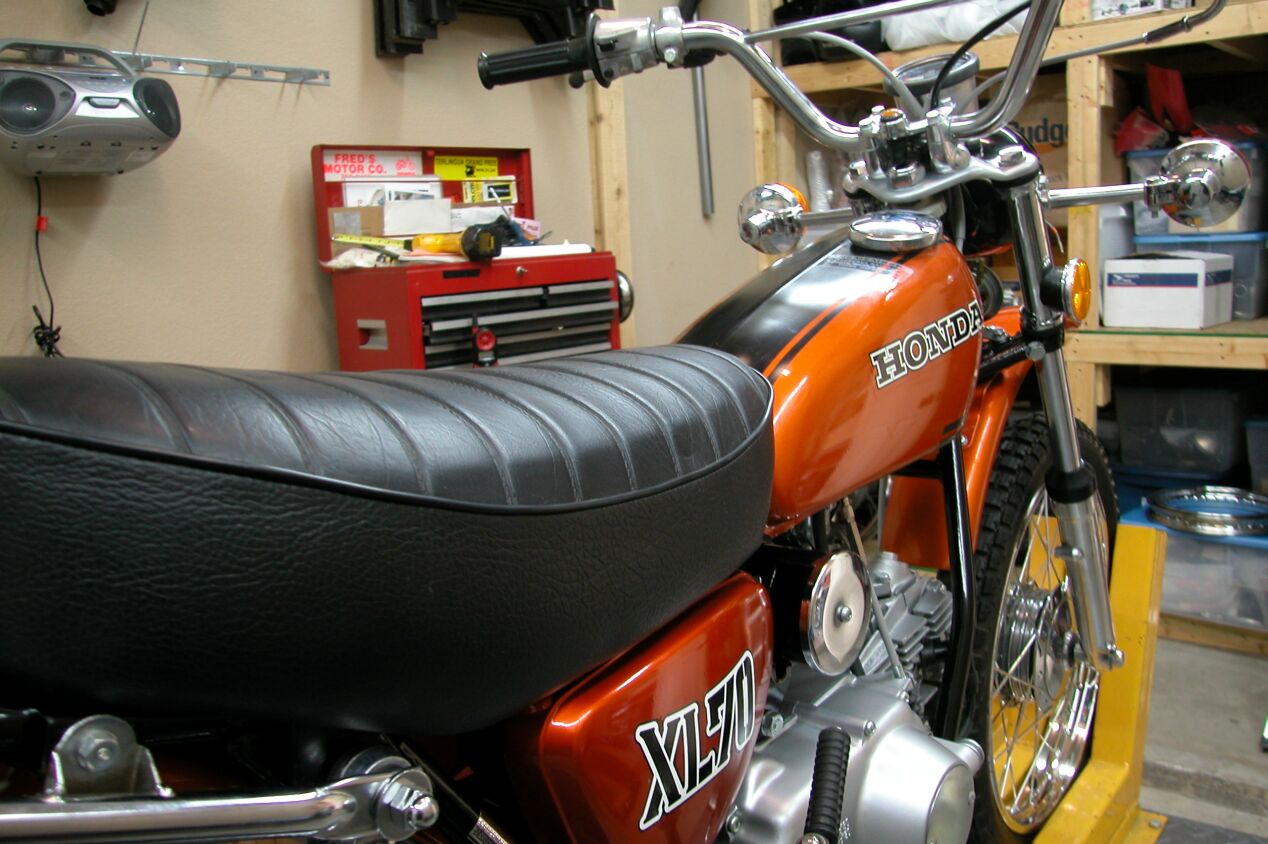

End of End of the day. Next day Made some more progress............and some detail pictures

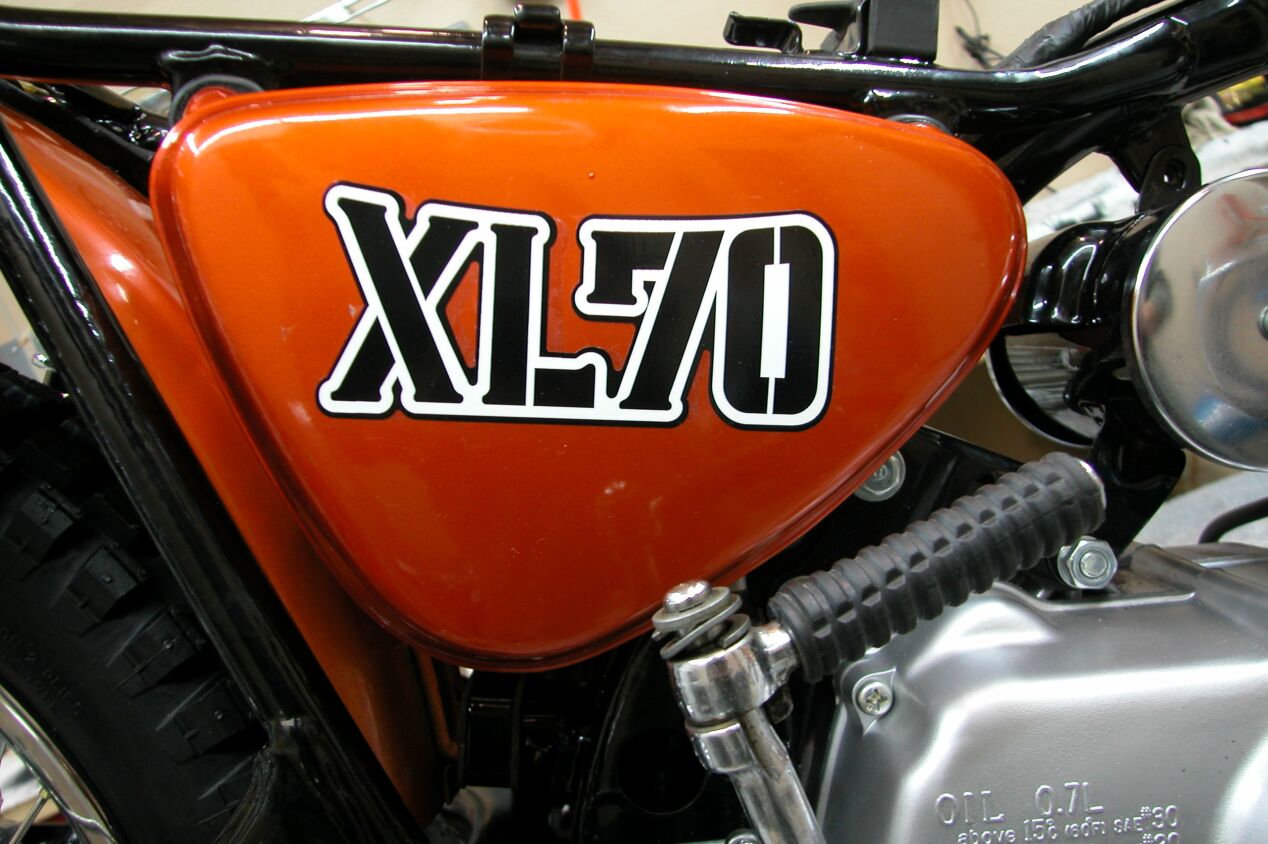

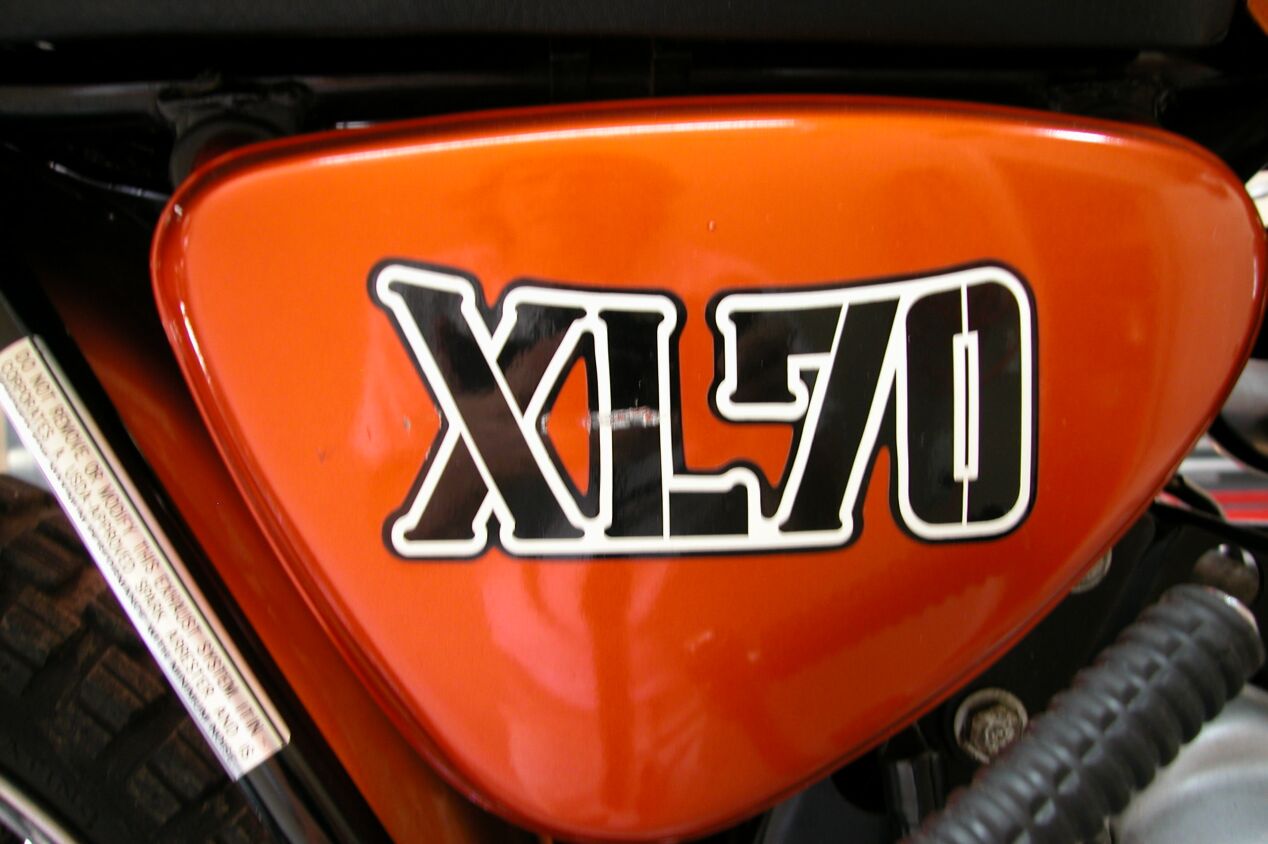

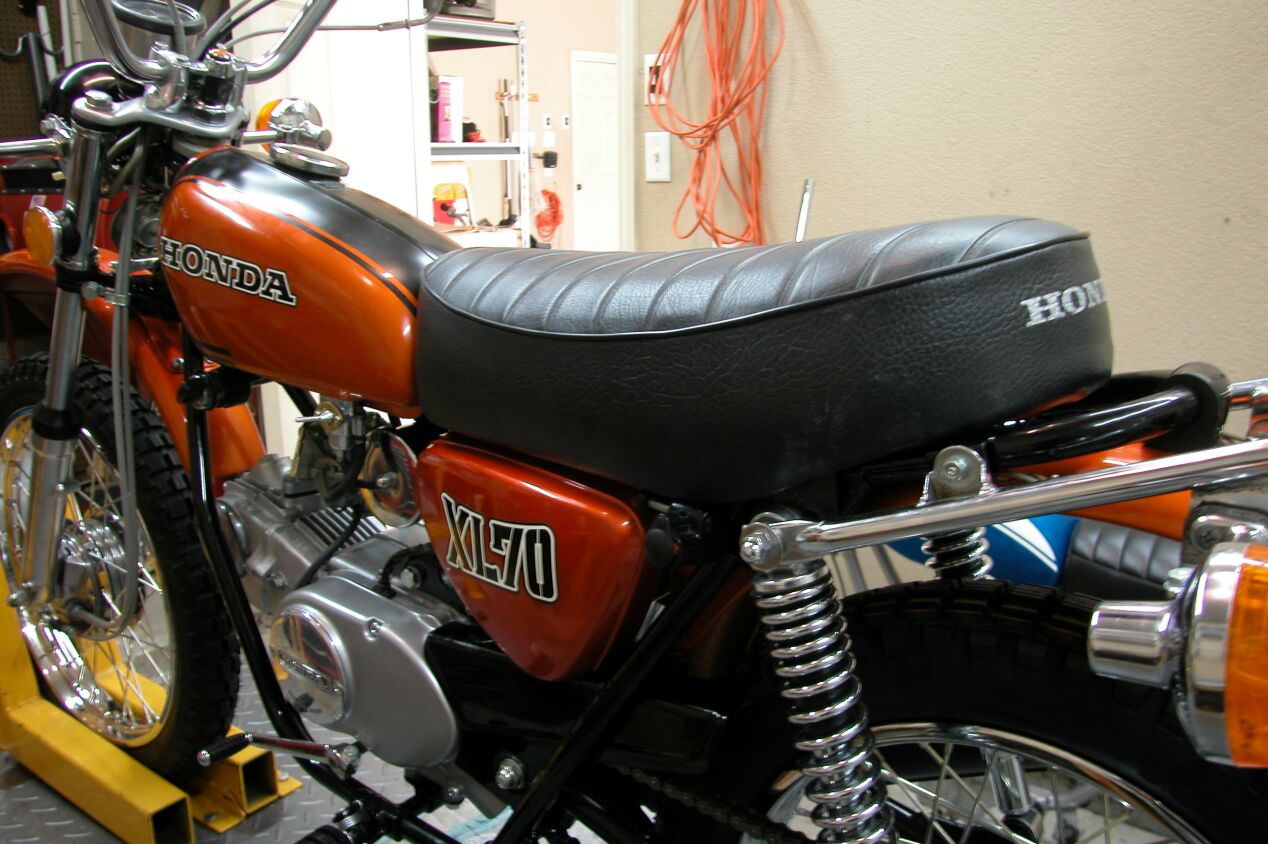

his is the side cover with the new decal

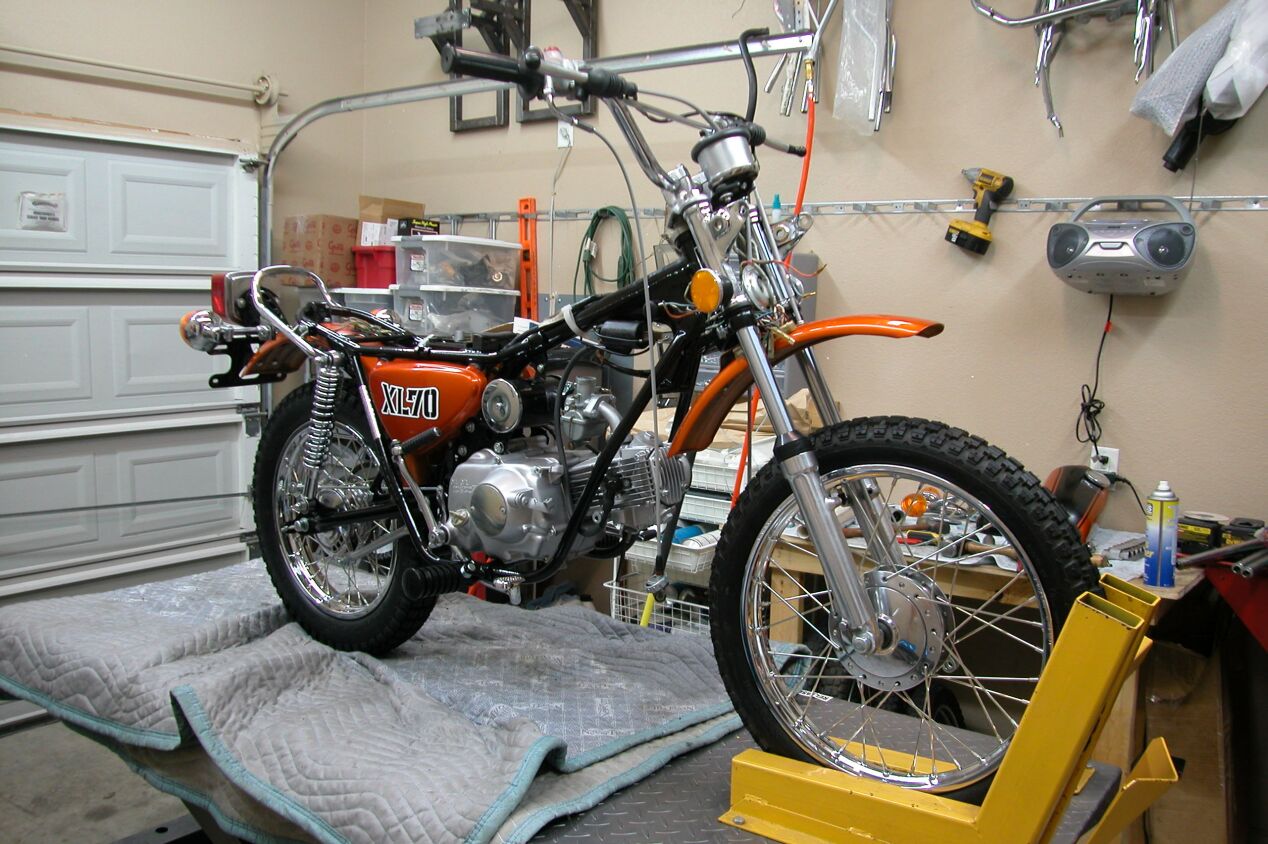

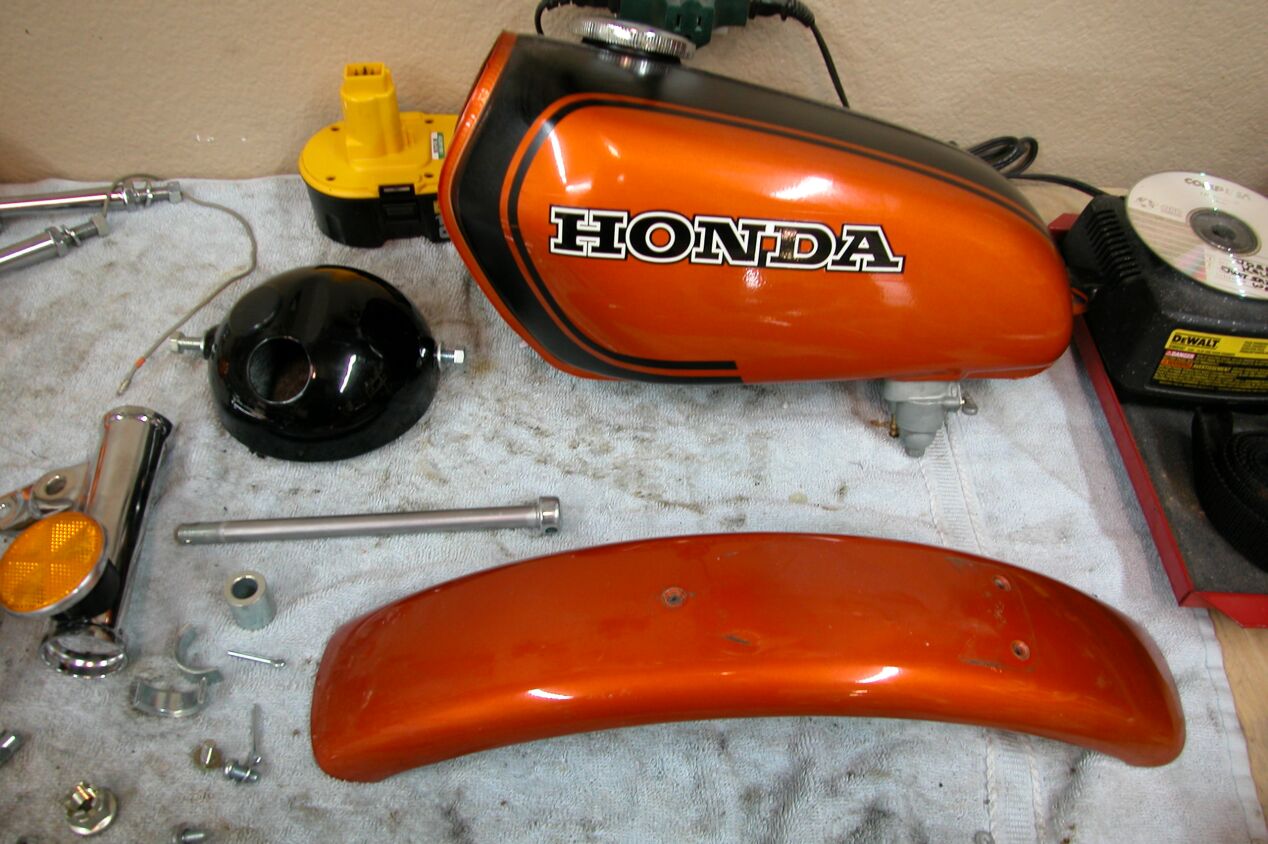

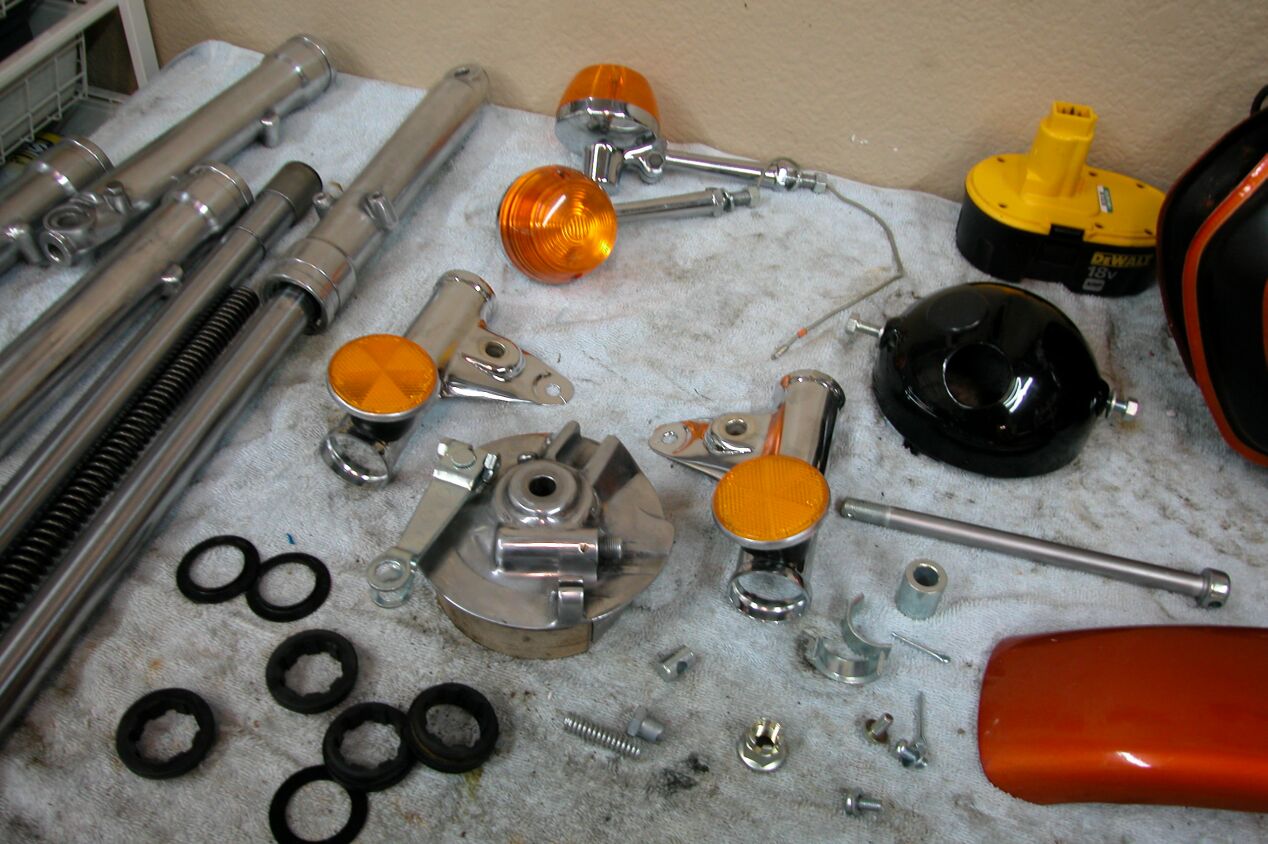

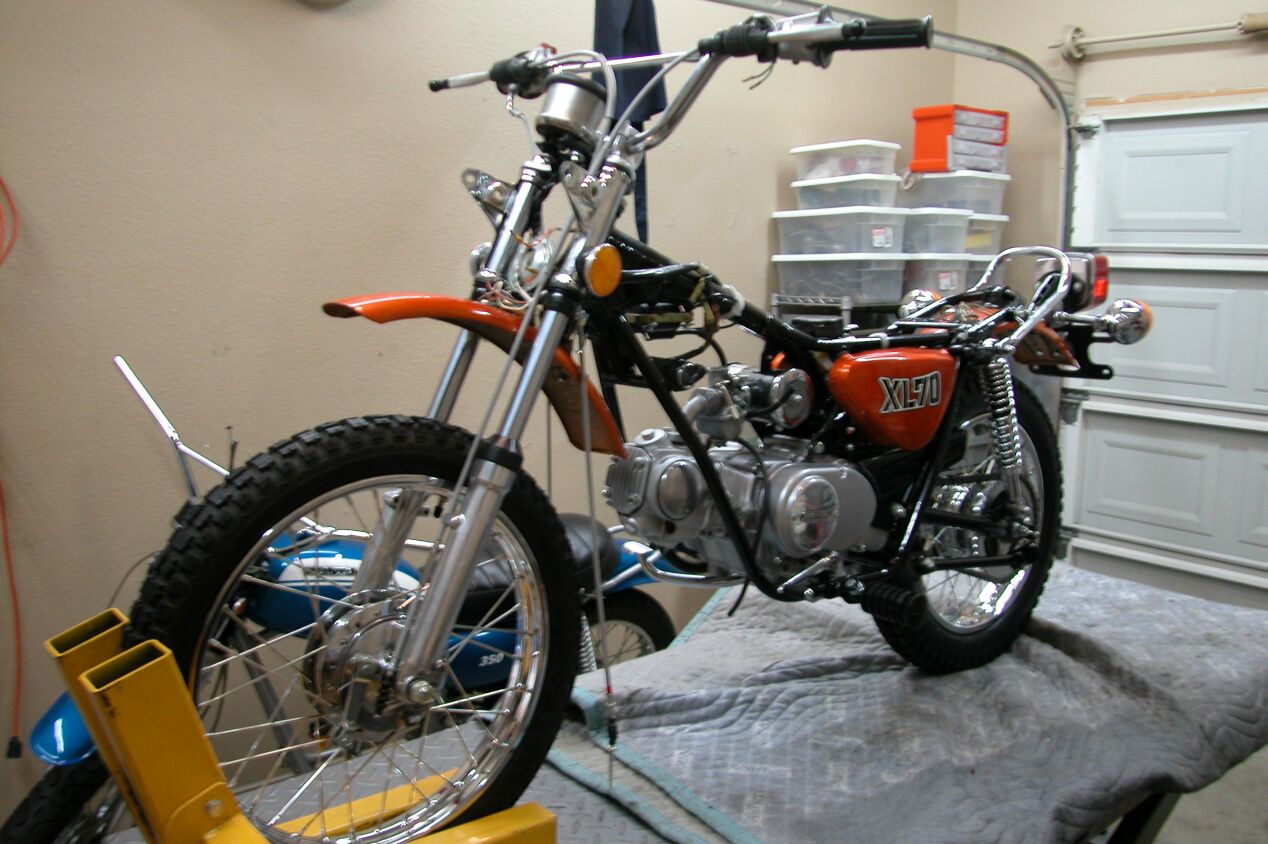

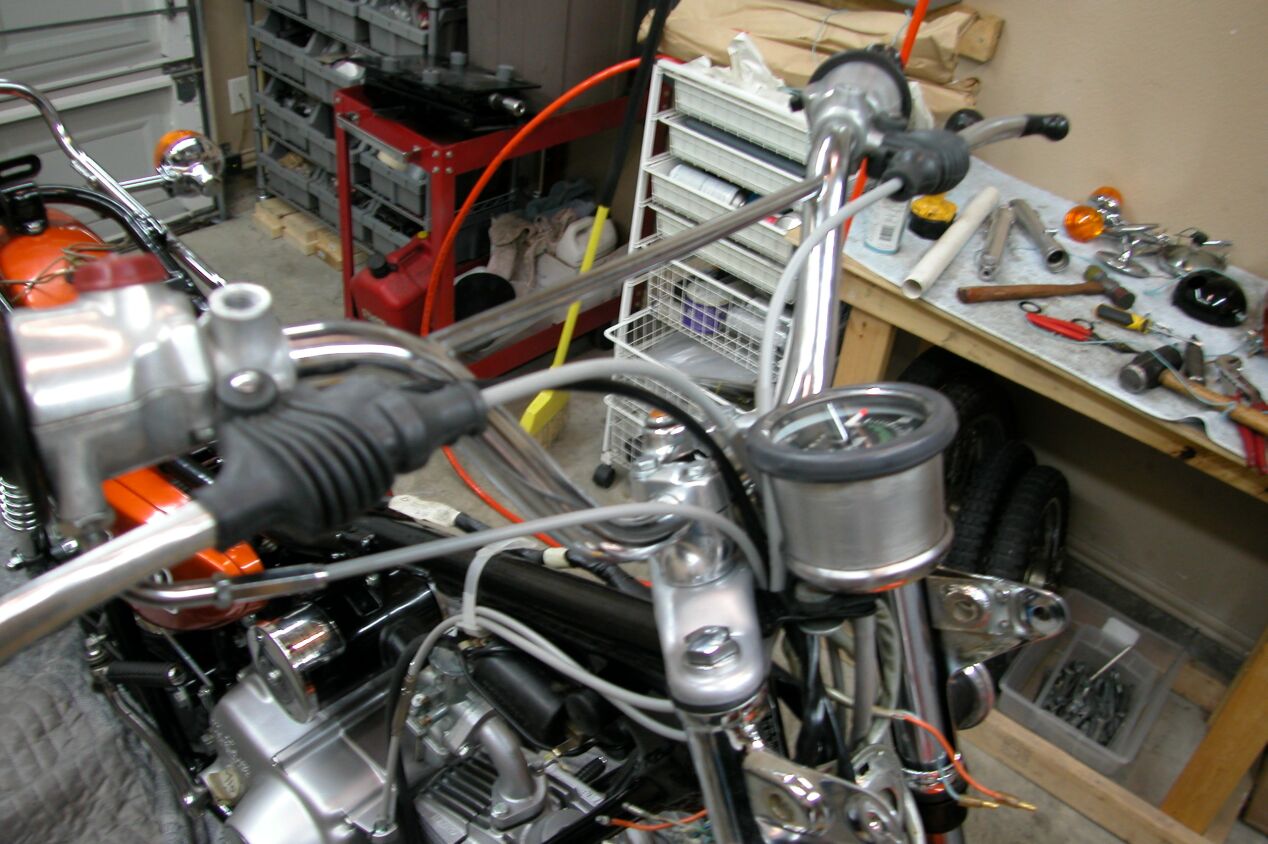

This is all that's left to install.....................If I could just get the forks together.
